Т3000 хидростатична сонда
  • Т3000 хидростатична сонда

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: LEFOO

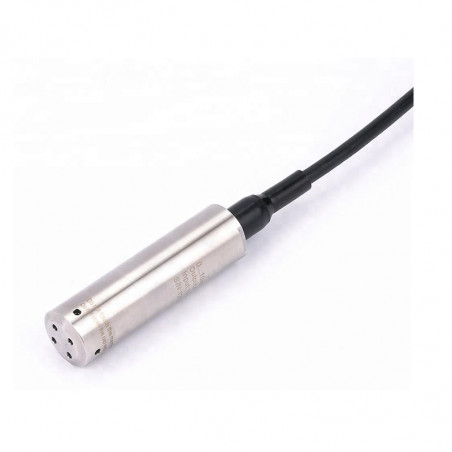

Т3000 хидростатична сонда

T3000 Liquid level pressure transmitter

T3000 series is a highly reliable and accurate liquid level transmitter. It can be widely used in liquid pressure and liquid level measurement, such as water, oil and other low corrosive liquids. It features with 1Cr18Ni9Ti stainless structure, high quality oil-filled pressure sensing unit, special amplifier and V/I transmitter circuit board, which make it easy to be calibrate the zero point and full scale by external program-controlled. The transmitter can be configured wearable, oil-resistant, acid and alkali resistant, high strenght breathable cable according to different firld using enviroment.

T3000 Order Ref NO:
T3000- 100- A4- 0.25- G- 1.0
A B C D E

A Measurement range (mH2O)

B Output: A4 = 4…20mA; V05 = 0,5~4,5V; V0 = 0~5V; V1 = 1~5V; V10 = 0~10V

C Accuracy: 0.25 = 0,25%FS; 0.5 = 0,5%FS

D Pressure connection: G = G1/4; T = Dive type

E Cable lenght (m)



Specification

Measurement Range 0…1 / 500 mH2O
Overload Pressure 1.5 times of full scales
Burst pressure 3 times of full scales
Accuracy ±0,25%FS lub ±0,5%FS
Long Term Stability Typical value: 0,1%FS; Maximum: 0,2%FS
Working Temperature -40°C …85°C
Compensated Temperature -10°C …70°C
Medium Compatibility All corrosive medium compatible with 1Cr18Ni9Ti and 316L
Output Mode Two-wired Three-wired
Output 4…20mA 0,5…4,5V 0/1…5V 0…10V
Power Supply 12~36VDC 5VDC 10-36VDC/AC 12-36VDC/AC
Load Resistance (U-10)/0,02(Ω) >100kΩ
Insulation >100MΩ @50V
Electrical Connection Waterproof cover + Two rectangular ring + Seal ring + Sealant + Glue; Protection: IP68
Pressure Connection G1/4 thread or Dive type
Response Time 10ms
Pressure Form Gauge pressure
Electromagnetic Combatibility Electromagnetic transmit:EN50081-1/-2; Electromagnetic sensitivity:EN50082-2
Lightning-proof Air conduction voltage 8000V, shell or cable conduction voltage 4000V; Can also be provided according to customer's requirement
