Производител: Cosel

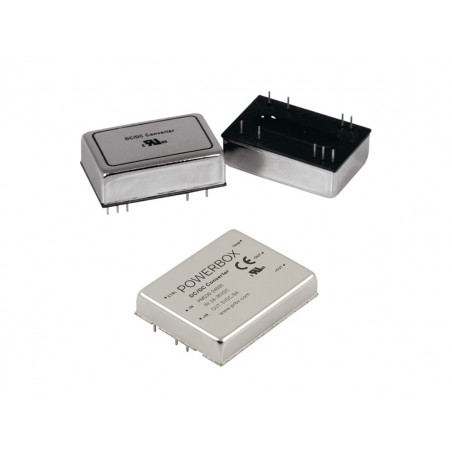

DC / DC преобразуватели от серията PMD

Key product features

  • Low Power DC-DC Converter
  • Various Input Voltages
  • Single or Dual Outputs
  • 12W to 30W Output Power
  • Various Protection Features
  • 5 or 6 Side Fully Shielded

Industries

  • Industrial
  • Mil Def Compliant
  • Transportation

Technical features

  • < 1U High
  • Remote On/Off
PMD Models Input Voltage Output Type Output Voltages Output Power
PMD12-12D DC9 - 18V Dual More information in the data sheet 12W
PMD12-12S DC9 - 18V Single 2.5V, 3.3V, 5.1V, 12V, 15V 12W
PMD12-24D DC18 - 36V Dual More information in the data sheet 12W
PMD12-24DW DC9 - 36V Dual More information in the data sheet 12W
PMD12-24S DC18 - 36V Single 2.5V, 3.3V, 5.1V, 12V, 15V 12W
PMD12-24SW DC9 - 36V Single 3.3V, 5.1V, 12V, 15V 12W
PMD12-48D DC36 - 75V Dual More information in the data sheet 12W
PMD12-48DW DC18 - 75V Dual More information in the data sheet 12W
PMD12-48S DC36 - 75V Single 2.5V, 3.3V, 5.1V, 12V, 15V 12W
PMD12-48SW DC18 - 75V Single 3.3V, 5.1V, 12V, 15V 12W
PMD15-12D DC9 - 18V Dual More information in the data sheet 15W
PMD15-12S DC9 - 18V Single 3.3V, 5V, 12V, 15V 15W
PMD15-24D DC18 - 36V Dual More information in the data sheet 15W
PMD15-24DW DC9 - 36V Dual More information in the data sheet 15W
PMD15-24S DC18 - 36V Single 3.3V, 5V, 12V, 15V 15W
PMD15-48D DC36 - 75V Dual More information in the data sheet 15W
PMD15-48DW DC18 - 75V Dual More information in the data sheet 15W
PMD15-48S DC36 - 75V Single 3.3V, 5V, 12V, 15V 15W
PMD20-12D DC9 - 18V Dual More information in the data sheet 20W
PMD20-12S DC9 - 18V Single 1.5V, 1.8V, 2.5V, 3.3V, 5V, 12V, 15V 20W
PMD20-24D DC18 - 36V Dual More information in the data sheet 20W
PMD20-24DW DC9 - 36V Dual More information in the data sheet 20W
PMD20-24S DC18 - 36V Single 1.5V, 1.8V, 2.5V, 3.3V, 5V, 12V, 15V 20W
PMD20-24SW DC9 - 36V Single 3.3V, 5V, 12V, 15V 20W
PMD20-48D DC36 - 75V Dual More information in the data sheet 20W
PMD20-48DW DC18 - 75V Dual More information in the data sheet 20W
PMD20-48S DC36 - 75V Single 1.5V, 1.8V, 2.5V, 3.3V, 5V, 12V, 15V 20W
PMD20-48SW DC18 - 75V Single 3.3V, 5V, 12V, 15V 20W
PMD30-12D DC9 - 18V Dual More information in the data sheet 30W
PMD30-12S DC9 - 18V Single 1.5V, 1.8V, 2.5V, 3.3V, 5V, 12V, 15V 30W
PMD30-24D DC18 - 36V Dual More information in the data sheet 30W
PMD30-24DW DC10 - 40V Dual More information in the data sheet 30W
PMD30-24S DC18 - 36V Single 1.5V, 1.8V, 2.5V, 3.3V, 5V, 12V, 15V 30W
PMD30-24SW DC10 - 40V Single 1.5V, 1.8V, 2.5V, 3.3V, 5V, 12V, 15V 30W
PMD30-48D DC36 - 75V Dual More information in the data sheet 30W
PMD30-48DW DC18 - 75V Dual More information in the data sheet 30W
PMD30-48S DC36 - 75V Single 1.5V, 1.8V, 2.5V, 3.3V, 5V, 12V, 15V 30W
PMD30-48SW DC18 - 75V Single 1.5V, 1.8V, 2.5V, 3.3V, 5V, 12V, 15V 30W
