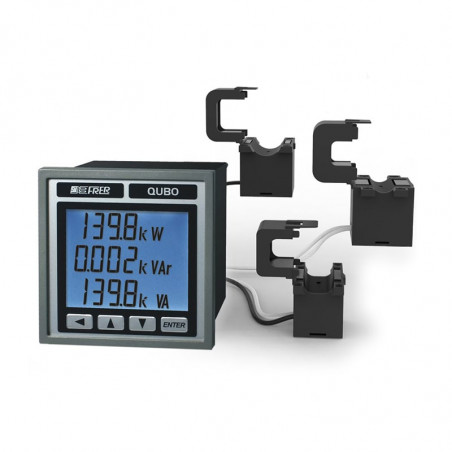

Многофункционални мрежови анализатори с миниатюрни CT с разделени ядра

The multifunction network analyzer is supplied with 3 Rogowski coils.


It is suitable for use in three-phase three and four-wire systems, even with unbalanced loads and distorted waveforms. It does not require the use of external integrators. It allows you to get all the major measurements, including both power and energy produced and consumed. The connection is simplified with RJ45 connectors. The system is suitable for retrofitting to existing installations and for laboratory use, but also an excellent solution for monitoring electrical networks in new installations.



Technical data

Display Backlit LCD
Digits height 13.5mm
Max. indication 4 digits
Decimal point position Automatic
Adjustable backlight 5 levels
Readings update <0.5s
Frequency 50-60Hz
Measuring type True RMS
Set basic accuracy ±0.2%
Nominal input voltage Un 100V …400V
Input range 10-120% UN, 10-120% IN
VT ratio (max primary) 1MV
Continuos overload 2 x IN, 1.2 x UN
Short - term oveload 20 x IN, 2 x UN (300msec.)
Voltage circuits consumption <0.5VA
Energy counting kWh – kVArh - kVAh
Maximum counting 2 000 000 000
Operating temperature 0…23…50°C
Storage temperature -30…70°C
Supply voltage 80-260V ac/dc 3VA/2W
Thermoplastic material UL 94-V0
Protection for housing IP50
Protection for terminals IP20
Galvanic insulation Power supply/I/O


Current transformer - technical data

Thermoplastic materials UL94-V0
Frequency 50Hz
Insulation reference voltage 3 kV x 1’ 50 Hz
Test voltage 720V
Protection degree IP20
Continuous overlcurrent 1,2 x In
Operating temperature -20 +70 °C
Storage temperature -40 +80 °C


Measured variables

  • Line current
  • Star voltage L-N
  • Delta voltage L-L
  • V and I unbalance
  • Neutral current
  • Active power
  • Reactwive power
  • Apparent power
  • Power factor
  • Displacement power factor
  • Frequency
  • Thermal current
  • Maximum thermal current
  • Average power
  • Maximum demand (kw)
  • THD V and I up to 32th harm


Feature list

  • Snap-on closure system without screws
  • Fitted with a blade fuse for secondary short circuit protection
  • Fitted with a !xing system for DIN rail
  • Fixing system for CT mounting on primary cable
  • Integrated secondary cables
  • Easy installation in small spaces
  • Lightweight and small dimensions
