Производител: Kerafol

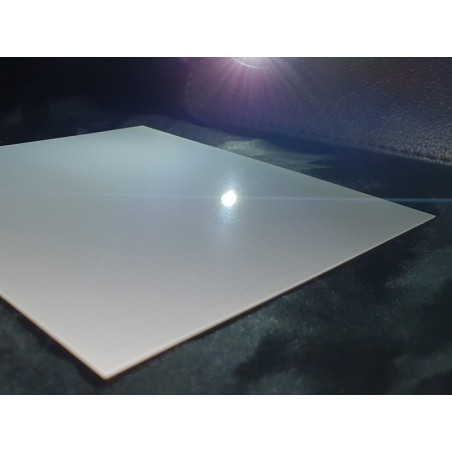

Keral 99 TF

Keral 99 TF

Thin-layer substrates

When we talk about reliable and economical quality thin film, we talk about K99TF. Due to the unique formula and selection of raw materials, our R&D department has created a substrate material that exhibits reliable quality and high performance, while remaining at a comparable price. The smooth surface, strength and dimensional accuracy are huge advantages when it comes to dealing with new thin-film designs, or even replacing other available properties.

Typical features Unit Value
Color - white
Density g/cm3 4
Surface Roughness Ra µm < 0,09
Bending strength MPa > 500
Longest edge of curvature % 0,2
Dielectric strength at 20°C kV/mm > 10
Thermal conductivity W/mK 30
Standard dimensions mm 101,6 x 101,6 i 50,8 x 50,8
Thickness mm 0,38
Consistency - thick
Main ingredients % 99,6% Al2O3
Grain size µm < 1,5

Benefits

  • very fine-grained homogeneous grain structure
  • good electrical insulation properties at room temperature
  • exceptionally good mechanical strength
  • can be cut by laser or wavy saw
  • good alignment

Usage

  • thin film application, e.g. temperature sensors
