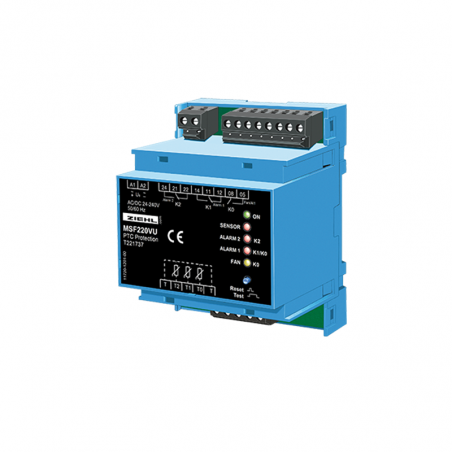

The MSF 220 V is particularly suitable for the temperature monitoring at dry transformers. 3 PTC-circuits with different nominal response temperatures (NRT) can be connected to this unit, one for controlling a fan (forced cooling) and two for alarms. Each PTC-circuit is monitored for break and short circuit. This reduces the probability of false alarms.
Part number:
|
Rated supply voltage Us | AC 220 - 240 V ± 10 %, 50/60 Hz ≤ 3 VA AC/DC 24 V, ± 15 %, < 3 VA |
---|---|
Connectable PTC resistors | 3 x 1...6 PTC according to DIN VDE V 0898-1-401 (formerly DIN 44081/82) |
Switching point | <4000 Ω |
Output relay | 2 x 1 change-over-contact (co), 1 normally-open contact (no) |
Type of contact | Type 2 (see general technical information) |
Test conditions | see general technical information |
Rated ambient temperature | -20 ... + 55 ° C |
Dimensions h x w x d | Design V4: 90 x 70 x 58 [mm] |
Attachment | on 35 mm DIN rail according to EN 60 715 or screws M4 (option) |
Protection Housing/Terminals | IP30 / IP20 |
Weight | approx. 320 g |
