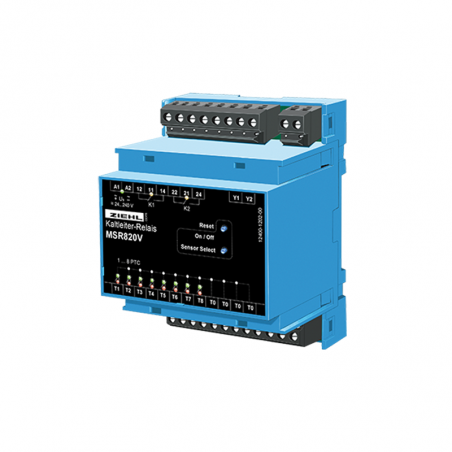

The MSR820V monitors up to 8 PTC-resistor-circuits at the same time. A common relay signals an alarm or an error in a sensorcircuit. The inputs can be enabled or disabled during operation. The MSR820V can also be used as a fault annuciator for collective reports.
Part number:
|
Rated supply-voltage Us | AC / DC 24-240 V 0/50/60 Hz + 25 / -20%,ADC 20,4 - 297 V ……... AC 20 - 264 |
---|---|
Connectable PTC-resistors | 8 x 1...6 pieces according to DIN VDE V 0898-1-401 (formerly DIN 44081/82) |
Switching Point | 3,3 kΩ ... 4 kΩ typical 3,65 kΩ |
Output Relay | 2 x 1 change-over contact (CO) |
Type of contact | AgSnO2 |
Testing Conditions | see general technical information |
Rated ambient Temperature range | -20 ... + 55 ° C |
Dimensions H x W x D | Design V4: 90 x 70 x 58 mm, mounting height 55 mm |
Attachment | on rail NS 35 mm according to EN 60 715 or with screws M4 (option) |
Obudowa ochronna / zaciski | IP 30 / IP 20 |
Weight | approx. 180 g |
