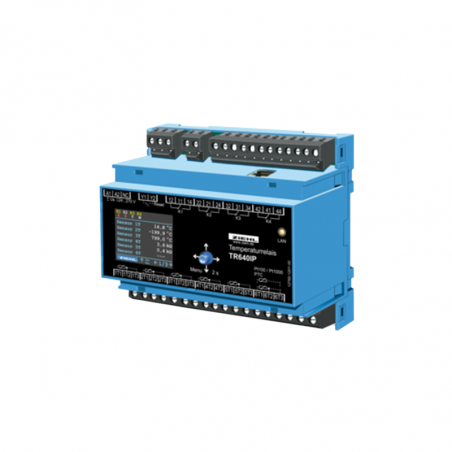

TR640IP Термично реле
  • TR640IP Термично реле

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: ZIEHL

TR640IP Термично реле

Temperature Relays TR640IP monitor up to 6 sensors for up to 4 limits. Different sensors can be connected at the same time, e.g. Pt 100 (RTD) and PTC-thermistors. Typical applications are monitoring of motors, generators or transformers. An other application is the use as a 2- or more step-controller with additional monitoring of over- or undertemperature or monitoring of differences in temperatures of 2 sensors.

Preset programs allow easy setting e.g. monitoring of transformers with/without monitoring of temperature of core or with/ without controlling a ventilator.

Operation can be made at the device or with a standard browser via ethernet.

  • 6 inputs for sensors Pt 100, Pt 1000 and PTC, mixed sensors possible
  • 4 alarms / output relays
  • alarm 2 of x = alarm only when limit is exceeded in min. 2 sensors
  • monitoring of difference of temperatures
  • monitoring of rate of change of temperature
  • logging of temperatures and history
  • preset programs for protection of motors, transformers and more
  • interface ethernet TCP/IP, values available via modbus TCP
  • programming with browser via TCP/IP or with joystick at device
  • coloured LCD display for clear display of temperatures and states of alarms
  • universal power supply AC/DC 24-270 V
По-малко
Прочетете още

Изпратете запитване

Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?

Свържете се с нас
ПОИСКАЙТЕ ПРОДУКТА close
Съобщението е изпратено успешно.
ПОИСКАЙТЕ ПРОДУКТА close
Преглед

Добави към списъка с желания

Трябва да сте влезли

Temperature Relays TR640IP monitor up to 6 sensors for up to 4 limits. Different sensors can be connected at the same time, e.g. Pt 100 (RTD) and PTC-thermistors. Typical applications are monitoring of motors, generators or transformers. An other application is the use as a 2- or more step-controller with additional monitoring of over- or undertemperature or monitoring of differences in temperatures of 2 sensors.

Preset programs allow easy setting e.g. monitoring of transformers with/without monitoring of temperature of core or with/ without controlling a ventilator.

Operation can be made at the device or with a standard browser via ethernet.

  • 6 inputs for sensors Pt 100, Pt 1000 and PTC, mixed sensors possible
  • 4 alarms / output relays
  • alarm 2 of x = alarm only when limit is exceeded in min. 2 sensors
  • monitoring of difference of temperatures
  • monitoring of rate of change of temperature
  • logging of temperatures and history
  • preset programs for protection of motors, transformers and more
  • interface ethernet TCP/IP, values available via modbus TCP
  • programming with browser via TCP/IP or with joystick at device
  • coloured LCD display for clear display of temperatures and states of alarms
  • universal power supply AC/DC 24-270 V
