Производител: KIRA Leuchten

KE-LED-ex 4003-вградени лампи или стационарно сглобяване

KE-LED-EX 4003 ST

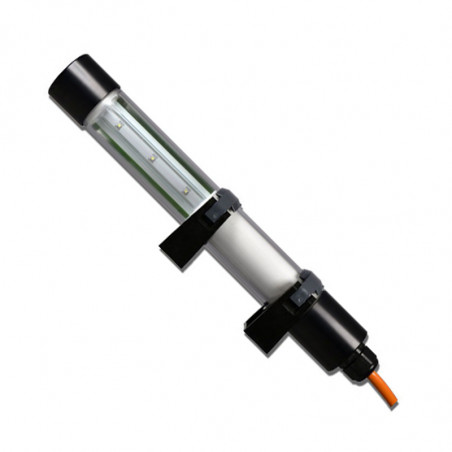

Explosion-proof LED built-in and surface mounted lamp. Due to compact dimension ideal for the integration in machines, vehicles and all kind of electric devices.

  • Illuminant: 3 POWER LED / 6500K
  • Protection tube: polycarbonate, shock-resistant, 40mm Ø
  • End cap: aluminium, black anodized
  • Fixation: incl. 2 fixing clamps made of plastic
  • Protection category: IP68 -50m/5h
  • Protection class: II / III
  • Cable: 10m H07BQ-F 2x1,50 mm²
  • Voltage: 230V / 110V / 42V / 24V / 12V
  • Special requests - as covered by our Ex-certificaton - can be fulfilled.


Technical details

Type Number
POWER LED		 Voltage
V		 Amp. Lumen
ca.		 Protection
class		 Protection
tube		 Protection
category		 Cable
10 Meter		 Plug Weight
kg

Art. No
KE-LED-EX 4003/230 3 230V AC 0,035 300 II Polycarbonate IP68 H07BQ-F brak 1,560 147100
KE-LED-EX 4003/110 3 110V AC/DC 0,035 300 II Polycarbonate IP68 H07BQ-F brak 1,56 147110
KE-LED-EX 4003/42 3 42V AC/DC 0,090 300 II Polycarbonate IP68 H07BQ-F brak 1,56 147120
KE-LED-EX 4003/24 3 24V AC/DC 0,120 300 III Polycarbonate IP68 H07BQ-F brak 1,56 147130
KE-LED-EX 4003/12 3 12V AC/DC 0,240 300 III Polycarbonate IP68 H07BQ-F brak 1,56 147140

ATEX identification:

EX II 2 G Ex eb mb op is IIC T4 Gb
EX II 2 D Ex tb op is IIIC T105°C Db IP68
ATEX No. TÜV 18 ATEX 8184

Dimensions in mm

  a b c d e f g
KE-LED-Ex 4003 430 64 40 85 65 240 40
