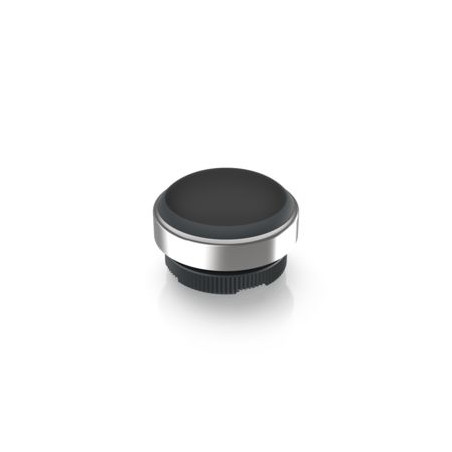

Each RAFIX 22 FSR button is equipped with a protective cover. The button is resistant to external impacts and provides a degree of protection compliant with IP65 and/or IP69K standards according to IEC 60529. This means protection against water ingress when high-pressure washers are used.
Illumination capability | Lens color | Catalog number |
YES | Transparent red | 1.30.280.001/2301 |
YES | Transparent yellow | 1.30.280.001/2401 |
YES | Transparent green | 1.30.280.001/2501 |
YES | Transparent blue | 1.30.280.001/2601 |
YES | Transparent white | 1.30.280.001/2201 |
NO | Black | 1.30.280.001/0101 |
Custom prints and ring colors available on request.
General Information | |
Lens shape | Translucent |
Lens color | Various |
Front ring color | Black |
Collar shape | Round |
Dimensions | |
Collar diameter | 31.3mm |
Height | 12.2mm |
Button hole | 22.3mm |
Mechanical Properties | |
Mounting | Threaded |
Button type | Momentary |
Tightening torque | 1.2Nm |
Button travel | 4mm |
Maximum force | 100 N |
Others | |
Operating temperature range | -40 – 80°C |
IP rating (front side) | IP65 |
ROHS | Yes |
REACH | Yes |
