Производител: RAFI

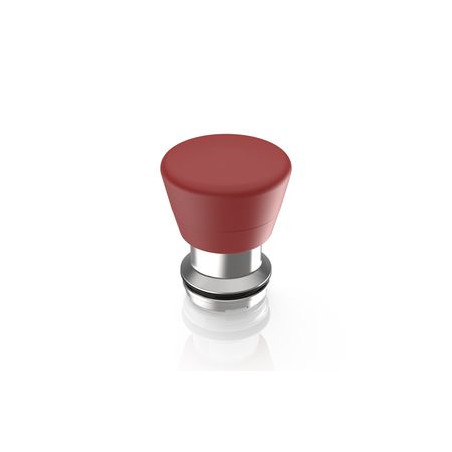

RAFIX 22 FSR - Бутони за спешни случаи

Emergency stop buttons with reinforced construction. The metal housing with a plastic or metal mushroom makes the button highly suitable for operation in harsh environmental conditions and ensures vandal resistance.

Safety buttons comply with the standards IEC 60 204, IEC 60 073, IEC 60 947, and VDE 0113 Part 1. Due to their forced mechanical movement, the buttons are resistant to duplication according to DIN EN ISO 13850. To prevent accidental activation, the button has a pressure point that must be pressed first before the button snaps into the pressed position. The emergency stop button does not block due to the actuator's design. For example, an initiated emergency stop procedure cannot be interrupted by trapped objects.

Buttons with plastic mushroom

Illumination capability Front IP rating Catalog number
YES IP65 (DIN EN 60529) 1.30.283.101/0300
NO IP65 (DIN EN 60529) 1.30.283.601/0300


RAFIX-schema

Buttons with metal mushroom

Illumination capability Front IP rating Catalog number
YES Momentary 1.30.283.111/0300
NO Momentary 1.30.283.611/0300


RAFIX-schema

General Information
Lens shape Mushroom
Lens color Red
Collar shape Round
Dimensions
Collar diameter 37.5mm
Height 41.1mm
Button hole 22.3mm
Mechanical Properties
Mounting Threaded metal rings
Switching function Constant
Reset Pull
Tightening torque 1.2 Nm
Others
Operating temperature range -40 – 80°C
Front IP rating IP65
ROHS Yes
REACH Yes
