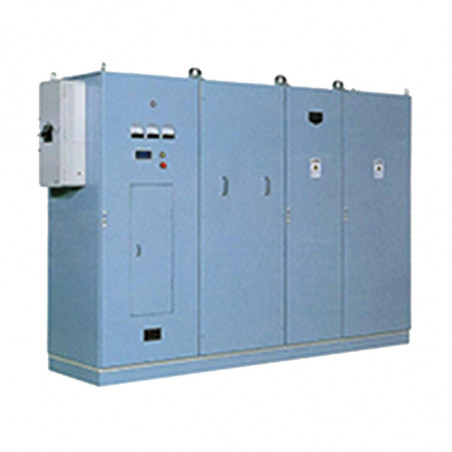

Transistor Generators - TG3-CTG types

  • Output power up to 300kW
  • Frequency up to 400kHz

These are modern, compact products with very high durability and reliability of operation.
The generator system itself works on the basis of a voltage inverter and is powered by a thyristor three-phase voltage regulator. The generator is a full-bridge inverter built with MOSFET type transistors whose load is a series resonant circuit.

generator
Power Source: 1. Short circuit breaker, 2. AC filter, 3. Electromagnetic contactor. Rectifier: 4. Thyristor rectifier, 5. Snubber circuit, 6. DC reactor, 7. Electrolytic capacitor. Oscillator: 8. HF capacitor, 9. Inverter bridge. Matching network: 10. Matching transformer, 11. Resonance capacitor, 12. Transformer, 13. Heating coil.

Specifications 5kW 10/20kW 50kW 75kW 100kW 150kW 200kW 250kW 300kW
Input Voltage
[V]		 200 200 200/400 400 400 400 400 400 400
Output Frequency
[kHz]		 200 30÷300 30÷400 30÷400 30÷400 30÷400 30÷400 30÷400 30÷400
Input Capacity
[kVA]		 7 14/28 70 100 140 210 280 350 420
Cooling Capacity
[l/min]		 10 20 40 50 60 70 80 90 100
External Dimensions
[mm]		 W: 430
D: 350
H: 500		 W: 600
D: 500
H: 1800		 W: 1800
D: 600
H: 1900		 W: 2000
D: 600
H: 2100		 W: 2400
D: 1000
H: 2100		 W: 2600
D: 800
H: 2100		 W: 2400
D: 1000
H: 2100		 W: 2400
D: 1000
H: 2100		 W: 2400
D: 1000
H: 2100
Weight
[kg]		 100 300 600 800 1000 1200 1500 1800 1800
