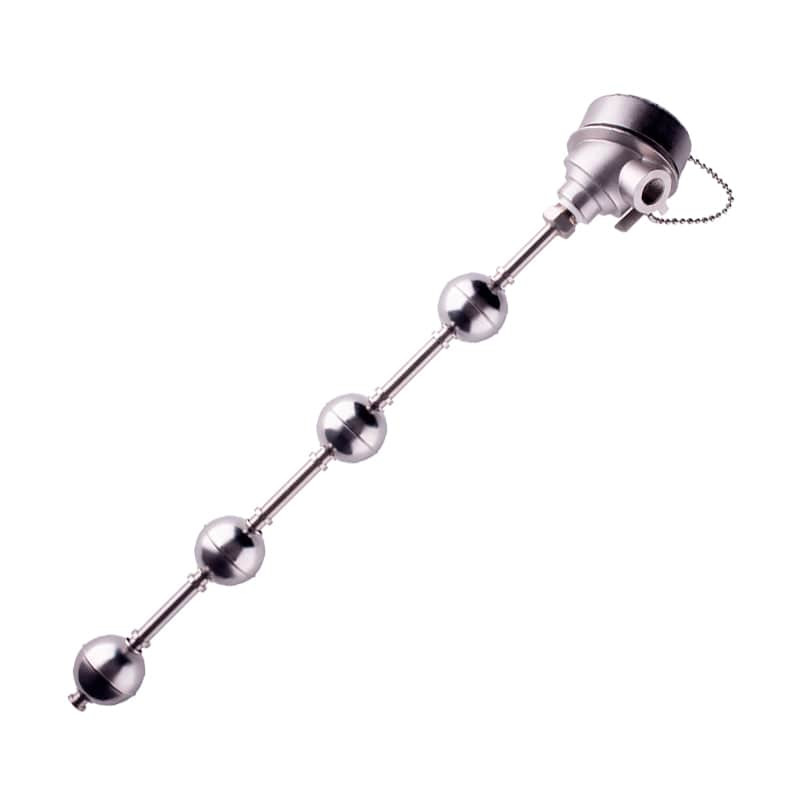

Float Switch FlameProof
The Deeter F/S FP is magnetic float on a reed switch or Hall Effect sensor stem for control and indication of a liquid level while in a potentially explosive atmosphere.
II 1/2 GD
Ex d IIC (*) Ga/Gb
Ex t IIIC (*) Db IP68
-20oC≤Ta≤+85oC
II 2 GD
Ex d IIC (*) Gb
Ex t IIIC (*) Db IP68
-20oC≤Ta≤+85oC
* Temperature class options to suit environment and process temperatures
T5 / T100oC for process temperatures ≤ 85oC
T4 / T135oC for process temperatures ≤ 125oC
T3 / T200oC for process temperatures ≤ 190oC
Atex Certificate: Sira 11ATEX1365
IECEx Certyfikat: IECEx SIR 11.0159
Type | Specification | |
---|---|---|
Sensor technology | Magnetic float with reed switch or Hall Effect | |
Sensor tube and wetted materials | Stainless steel 316L | |
Connection head material | Stainless steel 316L | |
IP rating with suitable cable gland | IP68 | |
Approximate weight: Ø12mm stem Ø8mm stem |
1kg + process connector + 0,5kg/metr 1kg + process connector + 0,5kg/metr |
|
Float Diameter: Specific gravity: Ø12mm stem Ø8mm stem: |
53mm / 0,65 30mm / 0,75 |
Other floats available |
Maximum liquid temperature: Reed switch Hall Effect |
-20…190 °C -10…40 °C |
|
Maximum head temperature | -20…+85 °C | Note 1 |
Maximum operating pressure | 150PSI / 10Bar standardowe 450PSI / 31 Bar |
Note 2 |
Thread connection-Sensor tube | ½’’ – 14NPT | |
Thread connection-Wiring port | ½’’ 14NPT or M20x1.5 | |
Connection head height | 95mm | |
Power supply: Reed switch: Hall Effect: |
Voltage free contacts 7…28VDC |
|
Switch rating: >4 point Reed switch <= 4 point reed switch Hall effect |
0 to 50Vdc. 1Amp. 50Watts Max 0 to 240vac. 1Amp. 50Watts max Open collector 28Vdc Max. 50mA Max |
Note 3 |
Note 1:When this equipment is intended to be used in a liquid with a process temperature above 85oC it is an essential requirement that the sensor head temperature is measured to determine if the ambient air cooling is sufficient to keep the head below 80o C. See installation manual for detail.
Note 2: The F/S FP sensor float and tube can withstand the stated pressure when sealed inside a tank. The connectionhead and resin seal to the senor stem must not be pressurised.
The standard zone0 fittings are rated at 10bar, these fittings are not part of the certified flameproof seal and should not be considered as part of an explosion proof containment. Please call our technical sales department regarding sensors for liquid pressures up to 31bar.
Note 3: The sum current drawn by all switch points must not exceed 1Amp total.
