Аксесоари - пластмасови фуражи
  • Аксесоари - пластмасови фуражи

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: FLEXICON

Аксесоари - пластмасови фуражи

IP66 IP66 IP66 IP66 IP66
FPA FPA90 FPA45 FLK FLK90

straight external
thread

90° elbow external
thread

45° elbow external
thread

straight external
thread

90° elbow external
thread

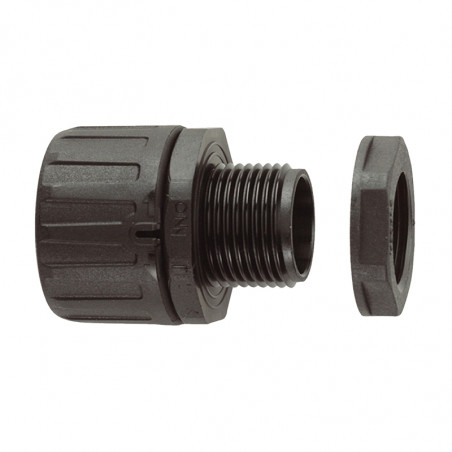

One piece nylon (PA66) moulded, fast fit, external threaded fitting. Suitable for knockouts or
threaded entries
One piece nylon (PA66)
moulded, fast fit, external
threaded 90 degree elbow
fitting. Suitable for knockouts.
One piece nylon (PA66)
moulded, fast fit, external
threaded 45 degree elbow
fitting. Suitable for knockouts.
One piece nylon (PA66) moulded, slim, fast fit, nylon external threaded fitting suitable for
knockouts or threaded entries.
One piece nylon (PA66) moulded, slim, fast fit, nylon external threaded 90 degree elbow fitting suitable for knockouts
Akcesoria - peszle plastikowe FPA Akcesoria - peszle plastikowe FPA90 Akcesoria - peszle plastikowe FPA45 Akcesoria - peszle plastikowe FLK Akcesoria - peszle plastikowe FLK90
Straight Metric 90 Degree Metric 45 Degree Metric Ext Metric Metric thread part number
10 10.0

FPA10-M12

FPA10-M12-90



FLK10-M12*


10 10.0

FPA10-M15


11 11.5

FPA11-M12

FPA11-M12-90


12 14.5
13 13.0

FPA13-M12

FPA13-M16-90



FLK13-M16


13 13.0

FPA13-M16


13 13.0

FPA13-M20


16 15.8

FPA16-M16

FPA16-M16 -90

FPA16-M20-45


16 15.8

FPA16-M20

FPA16-M20 -90


16 16.0

FLK16-M16

FLK16-M16 -90

16 16.0

FLK16-M20

FLK16-M20-90

16 16.5
16 16.5
18 18.5

FPA18-M20

FPA18-M20-90


20 20.0

FPA20-M20

FPA20-M20-90



FLK20-M20 (w)

FLK20-M20-90 (w)

20 21.0
21 21.2

FPA21-M20

FPA21-M20-90

FPA21-M20-45

FLK21-M20

FLK21-M20-90

22 25.0

FPA25-M25

FPA25-M25-90



FLK25-M25 (w)

FLK25-M25-90 (w)

23 27.5
25.4 25.4
28 28.5

FPA28-M25

FPA28-M25-90

FPA28-M25-45

FLK28-M25

FLK25-M25-90

28 28.5

FPA28-M32


30 30.5
32 33.5
34 34.5

FPA34-M32

FPA34-M32-90

FPA34-M32-45

FLK34-M32 (w)

FLK34-M32-90 (w)

34 34.5

FPA34-M40


40 41.0
42 42.5

FPA42-M40

FPA42-M40-90

FPA42-M50-45

FLK42-M40


42 42.5

FPA42-M50

FPA42-M50-90


50 46.4
54 54.5

FPA54-M50

FPA54-M50-90

FPA54-M50-45

FLK54-M50


54 54.5

FPA54-M53

FPA54-M53-90


63 57.0
67 67.2

FPA57-M53

FPA57-M53-90




IP66 IP66 IP66 IP66
FPA FPA MPC MPC-90

T piece with inspection lid

Divider

straight compression
fitting external thread

90° elbow nylon
compression fitting
external thread

Fast fit nylon (PA66) moulded T
piece with inspection lid
Fast fit nylon (PA66) moulded
reducing divider
2 part nylon (PA66) moulded
compression fitting with internal
spigot and all round external teeth
to grip conduit. Available in black
or grey (RAL 7001).
2 part compression, 90 degree
elbow fitting with internal spigot
and all round external teeth to grip conduit. Available in black or grey (RAL 7001).
Akcesoria - peszle plastikowe FPA Akcesoria - peszle plastikowe FPA Akcesoria - peszle plastikowe MPC Akcesoria - peszle plastikowe MPC_90
Metric thread part number
10 10.0
10 10.0
11 11.5
12 14.5

MPC-12-M16


13 13.0
13 13.0
13 13.0
16 15.8

FPA16T

FPA16-13-13


16 15.8
16 16.0
16 16.0
16 16.5

MPC-16-M16

MPC90-16-M16

16 16.5

MPC-16-M20

MPC90-16-M20

18 18.5
20 20.0

FPA20T


20 21.0

MPC-20-M20

MPC90-20-M20

21 21.2

FPA21T

FPA21-16-16


22 25.0
23 27.5

MPC-25-M25

MPC90-25-M25

25.4 25.4
28 28.5

FPA28T

FPA28-21-21


28 28.5
30 30.5
32 33.5

MPC-32-M32

MPC90-32-M32

34 34.5

FPA34T

FPA34-28-28


34 34.5
40 41.0

MPC-40-M40

MPC90-40-M40

42 42.5

FPA42T


42 42.5
50 46.4

MPC-50-M50


54 54.5
54 54.5
63 57.0

MPC-63-M63


67 67.2


A selection of other fittings available for non-metallicconduits

UNEF

Flange

Brass Threaded

Akcesoria - peszle plastikowe UNEF Akcesoria - peszle plastikowe Kolnerz Akcesoria - peszle plastikowe gwint mosiężny
straight, 90o,45o straight, 90o, 45o straight, 90o, 45o

FPAX

Cable Glands

Akcesoria - peszle plastikowe FPAX Akcesoria - peszle plastikowe Dławnice kablowe
straight, 90 ° , 45 ° UNEF, flange, brass threaded with integral strain relief straight, 90°, 45°
