Производител: FRER

Параметри на анализатора на QBO 96 DC мрежата

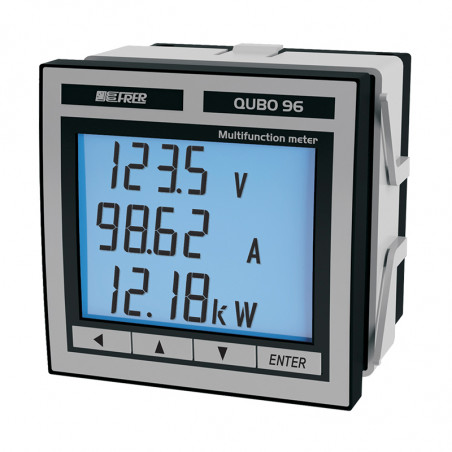

Multifunction DC Network Analyzer QUBO 96 DC

Multifunction network analyzer for DC systems. The voltage inputs is directly wired to the line, while the input proportional to the current is derived from shunt. By means of a simple programming procedure is possible to set the value of the primary current.



Rated data

Display Backlit LCD
Digits height 13.5mm
Max. indication 4 digits
Decimal point position Automatic
Adjustable backlight 5 levels
Readings update <0.5s
Basic accuracy ±0.2%
Nominal input current Shunt 60mV
Shunt ratio (max primary) 15kA
Input range 10-120% UN, 5-120% IN
Continuous overload 2 x IN, 1.2 x UN
Short-term overload 20 x IN, 2 x UN (300msec.)
Current circutis consumption <0.5VA
Voltage circutis consumption <0.5VA
Operating temperature 0…23…50°C
Storage temperature -30…70°C
Housing material UL 94-V0
Protection for housing IP50
Protection for terminasl IP20
Galvanic insulation In./out.
Installation category III, 300V, P.D. 2

Dimensions

Analizator parametrów sieci prądu stałego QUBO 96 DC - wymiary

Code

QUBO 96 DC   Q96C3LX60 -- - - -
Communication RS485 Modbus M
Modbus TCP + WebServer + internal memory E
Modbus TCP + WebServer + Gateway G
IEC61850 I
Profibus DP V0 P
Johnson Controls N2 open J
Input voltage 12V 12
24V 24
48V 48
60V 60
110V C1
220V D2
400V 4C
600V 6C
Aux. power supply 220-240V AC 2
20-60V AC/DC L
80-260V AC/DC H
Option None -
2 outputs alarm/pulses U

Measured value

  • Phase voltages and currents
  • Active power
  • Energy
  • Bidirectional active energy
  • Partial active energy
  • Thermal current
  • Maximum thermal current
  • Average active power
  • Maximum demand (kW)
  • Switchboard temperature
  • Hours run

Additional technical data

Energy counting
Number of digits 10
Maximum counting 2x109
Accuracy class 1 (kWh), 2 (kvarh)
Bidirectionality Tak
Alarm outputs (photo-mos 50V, 100mA)
Activation delay setting Nastawne 0…999s
Programmability Varibal, value, direction
Pulse output
Programmability Pulse value
Pulse duration Prog. 30…1000ms
Modbus RTU
Interface RS485
Speed (bps) 9600/19200/38400/57600
Communication parametrs Parity [&] stop prog.
Addresing range 1…247
ModBus TCP/Webserver
Ehernet interface IEEE 802.3 (u) 10 Base T/100 Base TX
Wiring RJ45
Speed 10/100 Mbit/s
Duplex Half/full
IEC61850
Ethernet inteface IEEE 802.3 (u) 10 Base T/100 Base TX
Wiring RJ45
Speed 10/100 Mbit/s
Duplex Half/full
ProfiBus DP 0V
Network NRZ asynchronous
Baud rate 9.6kbit/s…12Mbit/s
Addresing range 1…99 prog.
Complies to EN 50170
Johnson Controls N2 OPEN
Inteface RS485
Speed (bps) 9600
Parity None
Addresing range 1…247 prog.

Wiring diagrams

With shunt on positive polarity

Analizator parametrów sieci prądu stałego QUBO 96 DC - schemat łączeniowy - bocznik spolaryzowany dodatnio

With shunt on negative polarity

Analizator parametrów sieci prądu stałego QUBO 96 DC - schemat łączeniowy - bocznik spolaryzowany ujemnie
