Производител: FRER

Анализатор на мрежовия параметър с Rogowski Roils 96x96 - Q96R3H

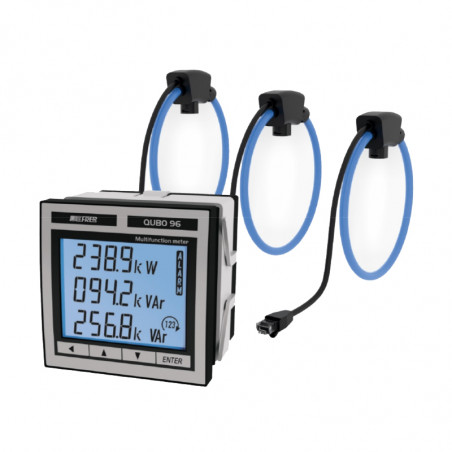

The multifunction network analyzer with 3 Rogowski coils. It is suitable for use in three-phase three and four-wire systems, even with unbalanced loads and distorted waveforms. It does not require the use of external integrators. It allows you to get all the major measurements, including both power and energy produced and consumed. The connection is simplified with RJ45 connectors. The system is suitable for retrofitting to existing installations and for laboratory use, but also an excellent solution for monitoring electrical networks in new installations.

Measured variables

  • Napięcia i prądy fazowe
  • Line current
  • Star voltage L-N
  • Delta voltage L-L
  • V and I unbalance
  • Neutral current
  • Active power
  • Reactwive power
  • Apparent power
  • Power factor
  • Displacement power factor
  • Frequency
  • Thermal current
  • Maximum thermal current
  • Average power
  • Maximum demand (kw)
  • THD V and I up to 32th harm
