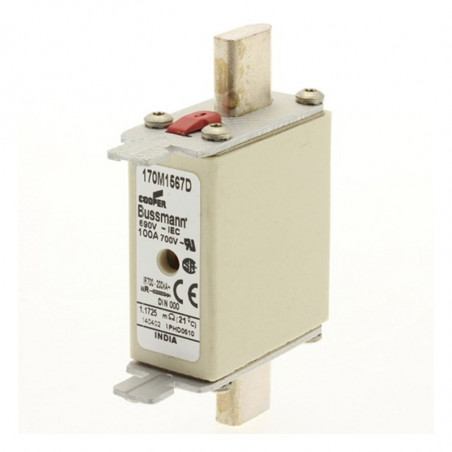

Бързодействащи ножови предпазители DIN
  • Бързодействащи ножови предпазители DIN

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: EATON Bussmann

Бързодействащи ножови предпазители DIN

Table.660 VAC/700 VAC 10-315 A - SIZE 000 aR/gR Breaking capacity 200kARMS

SIZE IN
[A]		 I2t
before arc
[A2s]		 I2t
@
1000 V
[A2s]		 Power loss
[W]		 Characteristic Type Type
DIN with micro-relay Type T		 Quantity in package Package weight
[kg]
000 10 3,8 25.5 3 gR

170M1558D

 10 1,3
16 7,2 48 5,5 gR

170M1559D

 10 1,3
30 11,5 78 7 gR

170M1560D

 10 1,3
25 19 130 9 gR

170M1561D

 10 1,3
32 40 270 10 gR

170M1562D

 10 1,3
40 69 460 12 gR

170M1563D

 10 1,3
50 115 770 15 gR

170M1564D

 10 1,3
63 215 1450 16 gR

170M1565D

 10 1,3
80 380 2550 19 aR

170M1566D

 10 1,3
100 695 4650 24 aR

170M1567D

 10 1,3
125 1200 8500 28 aR

170M1568D

 10 1,3
160 2300 16000 32 aR

170M1569D

 10 1,3
200 4200 28000 37 aR

170M1570D

 10 1,3
250 7750 51500 42 aR

170M1571D

 10 1,3
00 315 12000 80500 52 aR

170M1572D

 6 1,3

Table.1000 VAC 20-225 A - SIZE 00 aR breaking capacity 150kARMS

SIZE UN
[V]		 IN
[A]		 I2t
before arc
[A2s]		 I2t
@1000 V
[A2s]		 Power loss
[W]		 Type
DIN with micro-relay Type T		 Quantity in package Package weight
[kg]
00 1000 20 15 110 8,5

170M2673

 6 1,3
1000 25 28,5 210 9,5

170M2674

 6 1,3
1000 32 53 390 11

170M2675

 6 1,3
1000 35 69 500 12

170M2676

 6 1,3
1000 40 105 760 13

170M2677

 6 1,3
1000 50 215 1550 14

170M2678

 6 1,3
1000 63 380 2750 16

170M2679

 6 1,3
1000 80 815 5900 18

170M2680

 6 1,3
1000 100 1550 11500 21

170M2681

 6 1,3
1000 125 3000 22000 23

170M2682

 6 1,3
1000 160 6250 45000 26

170M2683

 6 1,3
900 200 12000 86500 31

170M2684

 6 1,3
900 225 18000 115000 33

170M2685

 6 1,3

Dimensions [mm]

Table.1000 VAC 20-225 A - SIZE 00 aR breaking capacity 150kARMS



Type SIZE IN I2t przy 690 VAC I2t at 690 VAC Power loss
[A] [A2S] [A2s] [W]

170M3808D

 1 40 40 285 4

170M3809D

 50 78 550 4.5

170M3810D

 63 120 850 6.5

170M3811D

 80 185 1350 8.5

170M3812D

 100 360 2600 10

170M3813D

 125 550 3900 11

170M3814D

 160 1150 8250 12

170M3815D

 200 2300 16500 12.5

170M3816D

 250 4350 31000 16

170M3817D

 315 7300 52000 20

170M3818D

 350 10000 73000 21.5

170M3819D

 400 16000 115000 23

170M4863D

 450 21500 155000 26.5

170M4864D

 500 27000 190000 28.5

170M4865D

 550 33500 240000 33

170M4866D

 630 48500 345000 37.5

170M4867D

 700 69500 495000 39

170M5808D

 2 400 11000 79000 29

170M5809D

 450 16000 115000 32

170M5810D

 500 21500 155000 34

170M5811D

 550 29000 215000 36

170M5812D

 630 41000 295000 42

170M5813D

 700 60500 430000 43

170M5814D

 800 86000 610000 48

170M5820D

 900 125000 895000 52

170M5816D

 1000 180000 1300000 53

170M5817D

 1100 245000 1750000 56

170M6808D

 3 500 14000 99500 43

170M6809D

 550 19500 140000 44

170M6810D

 630 31000 220000 45

170M6811D

 700 45000 320000 46

170M6812D

 800 69500 490000 48

170M6813D

 900 100000 720000 50

170M6814D

 1000 140000 985000 56

170M6892D

 1100 190000 1400000 57

170M8554D

 1250 300000 2150000 61

170M8555D

 1400 380000 2700000 70

170M8556D

 1500 470000 3350000 72

170M8557D

 1600 585000 4150000 74





Dimensions [mm]
SIZE
[mm]		 A B D E F H
1* 68±2.5 135±2.5 64 40 40 20
2 68±2.5 150±2.5 72 54 48 25
3 68±2.5 150±3.0 87 71 60 32

BEZPIECZNIKI SZYBKIE NOŻOWE DIN wymiar

Table. 690 VAC 10-800 A - SIZE 00, 1, 2, 3 gR Breaking capacity 300kARMS

SIZE IN
[A]		 I2t
before arc
[A2s]		 I2t
@ 690 V
[A2s]		 Power loss
[W]		 Type
DIN
with micro-relay type T		 Quantity in package Package weight
[kg]
DIN 00 10 3,8 20 3,5

170M2691

 6 1,5
16 7,2 38 5,5

170M2692

 6 1,5
20 13 70 6

170M2693

 6 1,5
25 24 125 8

170M2694

 6 1,5
32 53 275 9

170M2695

 6 1,5
40 95 490 10

170M2696

 6 1,5
50 185 1000 11

170M2697

 6 1,5
63 345 1800 14

170M2698

 6 1,5
80 695 3600 16

170M2699

 6 1,5
100 1250 6650 19

170M2700

 6 1,5
125 2300 12000 23

170M2701

 6 1,5
160 4350 22500 29

170M2702

 6 1,5
DIN 1 50 135 705 12

170M4176

 3 2
63 245 1300 15

170M4177

 3 2
80 500 2600 17

170M4178

 3 2
100 950 4850 20

170M4179

 3 2
125 1850 9500 23

170M4180

 3 2
160 3450 18000 28

170M4181

 3 2
200 6750 34500 31

170M4182

 3 2
250 13500 70500 35

170M4183

 3 2
315 26000 135000 41

170M4184

 3 2
350 34000 175000 45

170M4185

 3 2
400 48500 250000 48

170M4186

 3 2
DIN 2 200 5650 29000 33

170M5881

 3 2,3
250 10000 52500 40

170M5882

 3 2,3
315 19500 105000 46

170M5883

 3 2,3
350 26000 135000 50

170M5884

 3 2,3
400 39500 205000 53

170M5885

 3 2,3
450 55500 290000 59

170M5886

 3 2,3
500 73000 375000 66

170M5887

 3 2,3
550 100000 515000 70

170M5888

 3 2,3
630 150000 770000 79

170M5889

 3 2,3
DIN 3 350 23000 120000 55

170M6080

 1 1,2
400 34000 175000 59

170M6081

 1 1,2
450 48500 250000 62

170M6082

 1 1,2
500 64000 330000 67

170M6083

 1 1,2
550 84500 435000 70

170M6084

 1 1,2
630 125000 645000 85

170M6085

 1 1,2
700 160000 840000 93

170M6086

 1 1,2
800 245000 1300000 99

170M6087

 1 1,2



SIZE
[mm]		 A B Max D Max E F Min H
0 49 78,5 60 30 35 15
1 68 135 66 52 40 20
2 68 150 74 60 48 25
3 68 150 89 75 60 32
BEZPIECZNIKI SZYBKIE NOŻOWE DIN wymiary
