Производител: M-SYSTEM

W2TS - температурен конвертор с термодвойка вход с двоен изход

  • W2TS

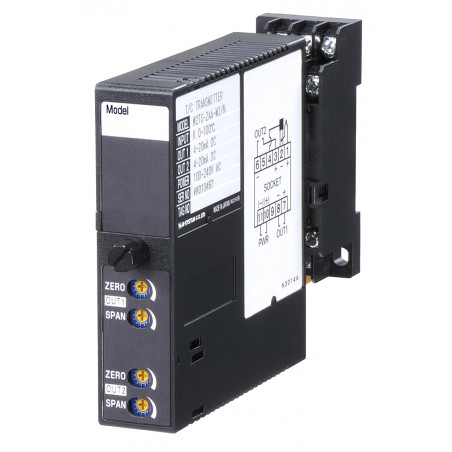

W2TS is a temperature converter with thermocouple input with two outputs.


Features

  • AC / DC power
  • LED power indicator < / li>
  • Provides standard analog output
  • Dual output
  • DIN rail mounting
  • High accuracy
  • Type available with fast response time
  • 2000V AC insulation

Input types: Thermocouple - K, E, J, T, B, R, S, N
Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


< / table>
По-малко
Прочетете още

Изпратете запитване

Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?

Свържете се с нас
ПОИСКАЙТЕ ПРОДУКТА close
Съобщението е изпратено успешно.
ПОИСКАЙТЕ ПРОДУКТА close
Преглед

Добави към списъка с желания

Трябва да сте влезли

W2TS is a temperature converter with thermocouple input with two outputs.


Features

  • AC / DC power
  • LED power indicator < / li>
  • Provides standard analog output
  • Dual output
  • DIN rail mounting
  • High accuracy
  • Type available with fast response time
  • 2000V AC insulation

Input types: Thermocouple - K, E, J, T, B, R, S, N
Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength DC: 2000V AC
AC: 1500V AC
Ranges selection To be set when ordering
Double exit Yes
Power AC / DC
Operating Temperature - 5 to + 55 ° C < / td>
Mounting DIN rail
Dimensions 29.5x88.5x124mm
< / table>
По-малко
Прочетете още
Коментари (0)
Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength DC: 2000V AC
AC: 1500V AC
Ranges selection To be set when ordering
Double exit Yes
Power AC / DC
Operating Temperature - 5 to + 55 ° C < / td>
Mounting DIN rail
Dimensions 29.5x88.5x124mm
