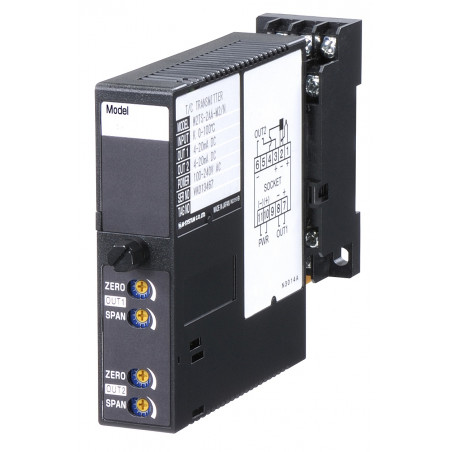

![W2XT - конвертор на температурата с вход за термодвойка - конфигурируем с двоен изход W2XT - конвертор на температурата с вход за термодвойка - конфигурируем с двоен изход](https://www.dacpol.eu/20867-large_default/w2xt-konvertor-na-temperaturata-s-vkhod-za-termodvojka-konfiguriruem-s-dvoen-izkhod.jpg)
![W2XT - конвертор на температурата с вход за термодвойка - конфигурируем с двоен изход W2XT - конвертор на температурата с вход за термодвойка - конфигурируем с двоен изход](https://www.dacpol.eu/20867-large_default/w2xt-konvertor-na-temperaturata-s-vkhod-za-termodvojka-konfiguriruem-s-dvoen-izkhod.jpg)
Трябва да сте влезли в
Снимките са само с информационна цел. Вижте спецификацията на продукта
please use latin characters
Types of inputs: Thermocouple - K, E, J, T, B, R, S, N
Types of outputs: current or voltage o different ranges
Possibility to make a range of inputs / outputs on a special order.
Wire connection | M3 screw terminals |
---|---|
Separation | Input / Output / Power |
Strength dielectric | With z DC power supply: 2000V AC With AC power: 1500V AC |
Ranges selection | Programmable via PC |
Double Output | Yes |
Power | AC / DC | tr>
Operating temperature | - 5 to + 55 ° C |
Mounting | DIN rail |
Dimensions | 29.5x88.5x124mm |
Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?
Трябва да сте влезли
Types of inputs: Thermocouple - K, E, J, T, B, R, S, N
Types of outputs: current or voltage o different ranges
Possibility to make a range of inputs / outputs on a special order.
Wire connection | M3 screw terminals |
---|---|
Separation | Input / Output / Power |
Strength dielectric | With z DC power supply: 2000V AC With AC power: 1500V AC |
Ranges selection | Programmable via PC |
Double Output | Yes |
Power | AC / DC | tr>
Operating temperature | - 5 to + 55 ° C |
Mounting | DIN rail |
Dimensions | 29.5x88.5x124mm |
