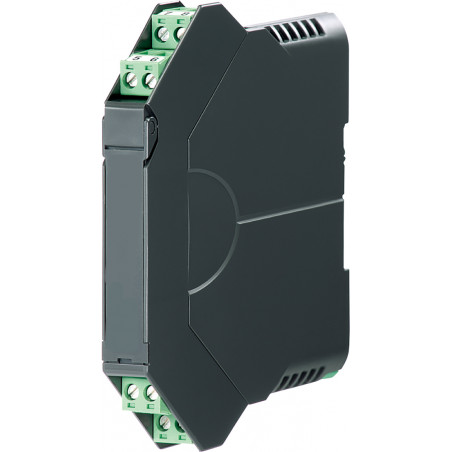

Снимките са само с информационна цел. Вижте спецификацията на продукта
please use latin characters
Input types: Thermocouple - K, E, J, T, B, R, S, N
Output types: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.
Wire connection | M3 screw terminals |
---|---|
Separation | Input / Output / Power |
Dielectric strength < / th> | On power DC: 2000V AC When powered by AC: 1500V AC |
Ranges selection | Programmable via PC |
Double Output | None < / td> |
Power | AC / DC |
Operating temperature | -10 to + 55 ° C |
Mounting | DIN rail |
Dimensions | 18x106x110.5mm |
Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?
Трябва да сте влезли
Input types: Thermocouple - K, E, J, T, B, R, S, N
Output types: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.
Wire connection | M3 screw terminals |
---|---|
Separation | Input / Output / Power |
Dielectric strength < / th> | On power DC: 2000V AC When powered by AC: 1500V AC |
Ranges selection | Programmable via PC |
Double Output | None < / td> |
Power | AC / DC |
Operating temperature | -10 to + 55 ° C |
Mounting | DIN rail |
Dimensions | 18x106x110.5mm |
