Ъглови клапани

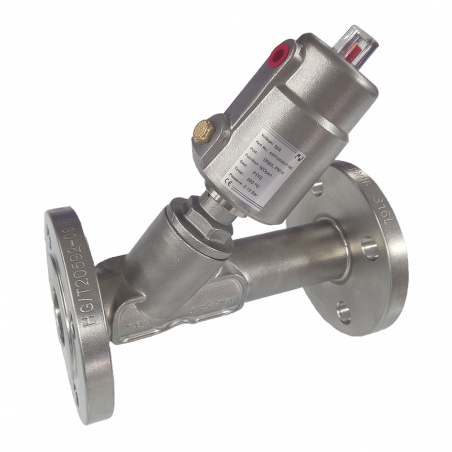

Stainless steel valve with plastic or stainless steel servo.

Advantages:
- long term usage
- fast reaction
- easy to install
- doesn't require maintenance
- small energy consumption

Wide range of application
- Beer industry
- Medical devices
- Food industry
- washing, disinfection machines.
- rubber industry machines
- Sewage
- Textiles industry(overprint, painting etc).
- Filling devices


Technical data
Size  terminal: DN10-DN50
For welding:  G3/8”-G2”
For welding:  DIN11850.2 DIN11850.3 ISO2037
Valve body material: CF8M
Servo material:  CF8
Cone seal
Valve control:  PTFE
Valve handle seal:  PTFE/FKM
Piston seal:  FKM/NBR
Used media: water, liquids, neutral gas, steam 180 OC,
Medium temperature: PTFE: -10OC - +180OC
Ambient temperature:  -10OC - +60OC
Viscosity:  max 600mm2/s
installation:  arbitrary
Control medium:  air and neutral gas
Operating pressure:  0,3-1MPa


Drawing and dimensions


Type Servo [mm] D [mm] R [mm] P Thread For welding
G K1 [mm] A1 [mm] L [mm] T [mm] SW [mm] O.D. [mm] K2 [mm] A2 [mm] LA [mm] LB [mm] S
[mm]
DN10 40 45.5 27 G1/8" G3/8" 115 120 68 12 26.6 - - - - - -
50 60 35 G1/8" G3/8"" 126 133 68 12 26.6 - - - - - -
DN15 40 45.5 27 G1/8" G1/2" 115 120 68 15 26.6 21.3 115 128 110 30 2.65
50 60 35 G1/8" G1/2" 126 133 68 15 26.6 21.3 126 140 110 30 2.65
DN20 50 60 35 G1/8" G3/4" 131 137 75 16 32 26.9 131 136 108 30 3.45
DN25 50 60 35 G1/8" G1" 140 149 90 17 39.5 33.7 140 150 112 32 3.85
63 77 43 G1/8" G1" 165 174 90 17 39.5 33.7 165 175 112 32 3.85
DN32 63 77 43 G1/8" G1-1/4" 175 188 116 21 50 38 175 193 136 40 3.35
80 98 52 G1/4" G1-1/4" 185 203 116 21 50 38 185 206 136 40 3.35
100 121 63 G1/4" G1-1/4" 205 215 116 21 50 38 205 218 136 40 3.35
DN40 63 77 43 G1/8" G1-1/2" 178 190 116 21 55.3 42 178 193 146 40 3.2
80 98 52 G1/4" G1-1/2" 187 204 116 21 55.3 42 187 207 146 40 3.2
100 121 63 G1/4" G1-1/2" 208 216 116 21 55.3 42 208 219 146 40 3.2
DN50 63 77 43 G1/8" G2" 184 203 138 22 70 54 184 206 160 45 2.7
80 98 52 G1/4" G2" 195 218 138 22 70 54 195 220 160 45 2.7
100 121 63 G1/4" G2" 215 230 138 22 70 54 215 232 160 45 2.7


Table 1


normal type, air, steam

  Type Terminal Internal diameter [mm] Servo [mm] Kv
m3/h		 180°C Max pressure MPa NC, single reaction NO, single reaction Order number
pressure MPa Control pressure MPa pressure MPa Min Control pressure MPa NC, single reaction NO, single reaction
DN10 G 3/8" 13 40 4.7 1.6 0 - 1.6 ≥0.4 - - 100101 -
DN10 G 3/8" 13 50 4.7 0 - 1.6 ≥0.3 0 - 1.6 0.3 100109 200409
DN15 G 1/2" 13 40 4.7 0 - 1.6 ≥0.4 - - 100105 -
DN15 G 1/2" 13 50 4.7 0 - 1.6 ≥0.3 0 - 1.6 0.3 100104 200404
DN20 G 3/4" 18 50 9.5 0 - 1.6 0.3 - 0.4 0 - 1.6 0.3 100106 200406
DN25 G 1" 24 50 18.1 0 - 1.6 0.3 - 0.55 - - 100108 -
DN25 G 1" 24 63 18.1 0 - 1.6 0.3 - 0.35 0 - 1.6 0.35 100100 200400
DN32 G 1-1/4" 31 63 23.1 0 - 1.6 0.3 - 0.5 0 - 1.4 0.39 100110 200410
DN40 G 1-1/2" 35 63 32.9 0 - 1.6 0.3 - 0.6 0 - 1.1 0.39 100112 200412
DN50 G 2" 45 63 52.8 0 - 1.0 0.3 - 0.65 0 - 0.6 0.39 100116 200416
DN50 G 2" 45 80 52.8 0 - 1.6 0.3 - 0.66 0 - 1.2 0.4 100119 200419
DN15 19x1.5 13 40 4.7 1.6 0 - 1.6 ≥0.4 - - 302105 -
DN15 19x1.5 13 50 4.7 0 - 1.6 ≥0.4 0 - 1.6 0.3 302104 302404
DN20 23x1.5 18 50 9.5 0 - 1.6 0.3 - 0.4 0 - 1.6 0.3 302106 302406
DN25 29x1.5 24 50 18.1 0 - 1.6 0.3 - 0.55 - - 302108 -
DN25 29x1.5 24 63 18.1 0 - 1.6 0.3 - 0.35 0 - 1.6 0.35 302100 302400
DN32 35x1.5 31 63 23.1 0 - 1.6 0.3 - 0.5 0 - 1.4 0.39 302110 302410
DN40 41x1.5 35 63 32.9 0 - 1.6 0.3 - 0.6 0 - 1.1 0.39 302112 302412
DN50 53x1.5 45 63 52.8 0 - 1.0 0.3 - 0.65 0 - 0.6 0.39 302116 302416
DN50 53x1.5 45 80 52.8 0 - 1.6 0.3 - 0.66 0 - 1.2 0.4 302119 302419


DIN11850.3 and ISO2037 is possible

Diagram



Table II


Type double side


  Type Terminal Internal diameter [mm] Servo [mm] Kv
m3/h		 180°C Max pressure MPa pressure MPa Control pressure MPa Order number
Double reaction, NC Double reaction Single reaction, NC Double reaction
DN10 G 3/8" 13 40 4.7 1.6 0 - 1.6 ≥0.4 0 - 0.2 200201 200301
DN10 G 3/8" 13 50 4.7 0 - 1.6 ≥0.3 0 - 0.1 200209 200309
DN15 G 1/2" 13 40 4.7 0 - 1.6 ≥0.4 0 - 0.2 200205 200305
DN15 G 1/2" 13 50 4.7 0 - 1.6 ≥0.3 0 - 0.1 200204 200304
DN20 G 3/4" 18 50 9.5 0 - 1.6 0.3 - 0.4 0 - 0.2 200206 200306
DN25 G 1" 24 50 18.1 0 - 1.6 0.3 - 0.55 0 - 0.35 200207 200307
DN25 G 1" 24 63 18.1 0 - 1.6 0.3 - 0.35 0 - 0.2 200208 200308
DN32 G 1-1/4" 31 63 23.1 0 - 1.6 0.3 - 0.5 0 - 0.4 200210 200310
DN40 G 1-1/2" 35 63 32.9 0 - 1.6 0.3 - 0.6 0 - 0.5 200212 200312
DN50 G 2" 45 63 52.8 0 - 1.0 0.3 - 0.65 0 - 0.8 200216 200316
DN50 G 2" 45 80 52.8 0 - 1.6 0.3 - 0.66 0 - 0.5 200219 200319
DN15 19x1.5 13 40 4.7 1.6 0 - 1.6 ≥0.4 0 - 0.2 302205 302305
DN15 19x1.5 13 50 4.7 0 - 1.6 ≥0.3 0 - 0.1 302204 302304
DN20 23x1.5 18 50 9.5 0 - 1.6 0.3 - 0.4 0 - 0.2 302206 302306
DN25 29x1.5 24 50 18.1 0 - 1.6 0.3 - 0.55 0 - 0.35 302208 302308
DN25 29x1.5 24 63 18.1 0 - 1.6 0.3 - 0.35 0 - 0.2 302200 302300
DN32 35x1.5 31 63 23.1 0 - 1.6 0.3 - 0.5 0 - 0.4 302210 302310
DN40 41x1.5 35 63 32.9 0 - 1.6 0.3 - 0.6 0 - 0.5 302212 302312
DN50 53x1.5 45 63 52.8 0 - 1.0 0.3 - 0.65 0 - 0.8 302216 302316
DN50 53x1.5 45 80 52.8 0 - 1.6 0.3 - 0.66 0 - 0.5 302219 302319


DIN11850.3 and ISO2037 is possible
Diagram



Table III

Valve free of hydraulic impact.
Closing opposite to flow direction

  Type Terminal Internal diameter. [mm] Servo [mm] Kv m3/h 180"C Max pressure MPa pressure MPa Min Control pressure MPa Order number
DN10 G 3/8" 13 50 4.7 1.6 0 - 1.6 0.45 100509
DN15 G 1/2" 13 50 4.7 0 - 1.6 0.45 100504
DN20 G 3/4" 18 50 9.5 0 - 1.2 0.45 100506
DN25 G 1" 24 63 18.1 0 - 1.0 0.45 100500
DN32 G 1-1/4" 31 63 23.1 0 - 0.6 0.45 100510
DN32 G 1-1/4" 31 80 23.1 0 - 1.6 0.4 100517
DN40 G 1-1/2" 35 80 32.9 0 - 1.0 0.4 100518
DN40 G 1-1/2" 35 100 32.9 0 - 1.6 0.4 100520
DN50 G 2" 45 80 52.8 0 - 0.6 0.4 100519
DN50 G 2" 45 100 52.8 0 - 0.6 0.4 100521
DN15 19x1.5 13 50 4.7 1.6 0 - 1.6 0.45 302504
DN20 23x1.5 18 50 9.5 0 - 1.6 0.45 302506
DN25 29x1.5 24 63 18.1 0 - 1.6 0.45 302500
DN32 35x1.5 31 63 23.1 0 - 1.6 0.45 302510
DN32 35x1.5 31 80 23.1 0 - 1.6 0.4 302517
DN40 41x1.5 35 80 32.9 0 - 1.6 0.4 302518
DN40 41x1.5 35 100 32.9 0 - 0.1 0.4 302520
DN50 53x1.5 45 80 52.8 0 - 1.6 0.4 302519
DN50 53x1.5 45 100 52.8 0 - 1.6 0.4 302521



Table IV

Special valve


  Type Terminal Internal diameter [mm] Servo [mm] Kv
m3/h		 180°C Max pressure MPa pressure MPa Min Control pressure MPa Order number
Flow above valve socket MPa Flow below valve socket MPa NC, single reaction NC, double reaction
DN10 G 3/8" 13 50 4.7 1.6 0 - 1.6 0 - 1.6 ≥0.45 100609 200609
DN15 G 1/2" 13 50 4.7 0 - 1.6 0 - 1.6 ≥0.45 100604 200604
DN20 G 3/4" 18 50 9.5 0 - 1.6 0 - 1.2 0.45 - 0.5 100606 200606
DN25 G 1" 24 63 18.1 0 - 1.6 0 - 1.0 ≥0.45 100600 200600
DN32 G 1-1/4" 31 63 23.1 0 - 1.6 0 - 0.6 0.45 - 0.6 100610 200610
DN32 G 1-1/4" 31 80 23.1 0 - 1.6 0 - 1.2 0.4 - 0.48 100617 200617
DN40 G 1-1/2" 35 80 32.9 0 - 1.6 0 - 1.0 0.4 - 0.55 100618 200618
DN40 G 1-1/2" 35 100 32.9 0 - 1.6 0 - 1.6 0.4 - 0.45 100620 200620
DN50 G 2" 45 80 52.8 0 - 1.6 0 - 0.6 0.0 - 0.75 100619 200619
DN50 G 2" 45 100 52.8 0 - 1.6 0 - 1.0 0.4 - 0.6 100621 200621
DN15 19x1.5 13 50 4.7 1.6 0 - 1.6 0 - 1.6 ≥0.45 301604 302604
DN20 23x1.5 18 50 9.5 0 - 1.6 0 - 1.2 0.45 - 0.5 301606 302606
DN25 29x1.5 24 63 18.1 0 - 1.6 0 - 1.0 ≥0.45 301600 302600
DN32 35x1.5 31 63 23.1 0 - 1.6 0 - 0.6 0.45 - 0.6 301610 302610
DN32 35x1.5 31 80 23.1 0 - 1.6 0 - 1.2 0.4 - 0.48 301617 302617
DN40 41x1.5 35 80 32.9 0 - 1.6 0 - 1.0 0.4 - 0.55 301618 302618
DN40 41x1.5 35 100 32.9 0 - 1.6 0 - 1.6 0.4 - 0.45 301620 302620
DN50 53x1.5 45 80 52.8 0 - 1.6 0 - 0.6 0.4 - 0.75 301619 302619
DN50 53x1.5 45 100 52.8 0 - 1.6 0 - 1.0 0.4 - 0.6 301621 302621

DIN11850.3 and ISO2037 is possible
Diagram
