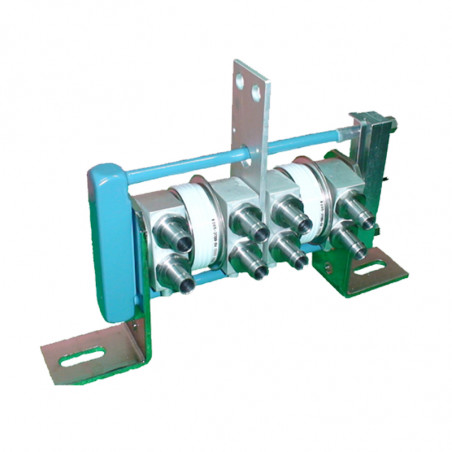

2-диоден модул –MOC..W

Two element diode power block with water radiator

Properties:
• Two element diode power block with water radiator
• Water cooling

Typical applications:
• rectifiers,
• power supplies


Options:
• clamp assembled K-1 – Drawing. 1
• clamp assembled K-2 – Drawing. 2
• clamp assembled K-3 – Drawing. 3
• Thermal protection
• RC circuit
• fuse


Power block selection:
• There are different semiconductors used, depending on the load. Used semiconductor size is given in the Table 1.


Operation conditions:
One element power blocks are used in power electronic systems
• Cooling water temperature 50 C do 300 C at ambient air temperature > -100 C
• Atmospheric pressure  860hPa do 1060hPa

Drawing 1
Drawing 2
Drawing 3





Table 1 Power blocks parameters


Module type Mean current  IF(AV) [A] Blocking voltage  U RRM
    [V]		 Overcurrent
I FSM
[A]		 Semiconductor size
[mm]		 Block Weight
[kg]
MOC75W 800…1400 400…2200 8000… 12000 1,4
MOC7W 450…650 400…3000 7000…10000 1,6
MOC8W 630…1000 400…6000 10000…24000 1,6
MOC9W 1000…3000 400…6000 20000…42000 3,2
MOC11W 2000…4000 400…7200 27000…65000 9,8


Power block scheme MOD..W
