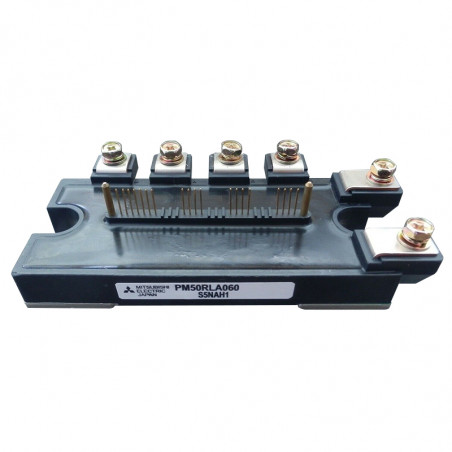

5 генерация модули IPM - серия L
  • 5 генерация модули IPM - серия L

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Mitsubishi

5 генерация модули IPM - серия L

Characteristics:

  1. Low power losses.
  2. Noises:
    • improvement of Antyparallel diode characteristics
    • improvement of control methods
  3. Increased current of brake transistor
    • ½ IGBT nominal current.
  4. New casing

VCE(SAT) comparison of IPM generation

Voltage
[V]		Vce(sat) typ. V@Vd=15V, Tj=125°C
3rd generation4th generation5th generation
600 1,9 1,7 1,5
1200 2,2 2,1 1,9

 Current
[A]		Brake current
5th generation [A]4th generation
[A]
PM50RLA060 50 25 15
PM50RLB060 50 25 15
PM75RLA060 75 50 30
PM75RLB060 75 50 30
PM100RLA060 100 50 30
PM150RLA060 150 75 50

Electrical data

TypeMaximal parameetersVce(sat)Casing
VCES
[V]		IC
[A]		Pt
[W]		@ Tj=25°C
[V]
PM50CLA060 600 50 101 1,6 L1
PM50CLB060 600 50 101 1/6 L2
PM50RLA060 600 50 101 1/6 L1
PM50RLB060 600 50 101 1/6 L2
PM75CLA060 600 75 297 1/6 L1
PM75CLB060 600 75 297 1/6 L2
PM75RLA060 600 75 297 1/6 L1
PM75RLB060 600 75 297 1/6 L2
PM100CLA060 600 100 356 1/6 L1
PM100RLA060 600 100 356 1/6 L1
PM150CLA060 600 150 480 1/6 L1
PM150RLA060 600 150 480 1/6 L1
PM200CLA060 600 200 595 1/6 L3
PM200RLA060 600 200 595 1/6 L3
PM300CLA060 600 300 781 1/6 L3
PM300RLA060 600 300 781 1/6 L3
PM450CLA060 600 450 1041 1/9 L4
PM600CLA060 600 600 1785 1/9 L4
PM25CLA120 1200 25 116 1/8 L1
PM25CLB120 1200 25 116 1/8 L2
PM25RLA120 1200 25 116 1/8 L1
PM25RLB120 1200 25 116 1/8 L2
PM50CLA120 1200 50 369 1/8 L1
PM50CLB120 1200 50 369 1/8 L2
PM50RLA120 1200 50 369 1/8 L1
PM50RLB120 1200 50 369 1/8 L2
PM75CLA120 1200 75 457 1/8 L1
PM75CLB120 1200 75 457 1/8 L2
PM75RLA120 1200 75 457 1/8 L1
PM75RLB120 1200 75 457 1/8 L2
PM100CLA120 1200 100 595 1/9 L3
PM100RLA120 1200 100 595 1/9 L3
PM150CLA120 1200 150 781 1/9 L3
PM150RLA120 1200 150 781 1/9 L3
PM200CLA120 1200 200 1041 2,1 L4
PM300CLA120 1200 300 1562 2,1 L4
PM450CLA120 1200 450 2500 2,1 L4

OC - over-current prot.
SC - short-circuit prot.
OT - over-temp. prot.
UV - under-voltage lock prot.

SymbolInterior functions
C 3 phase IGBT with driver and protection: C/SC/OT/UV
R 3 phase IGBT with driver, brake and protection: C/SC/OT/UV

Casing L1 Casing L2
PM50CLA060, PM50RLA060, PM75CLA060, PM75RLA060, PM100CLA060, PM100RLA060, PM150CLA060, PM150RLA060, PM25CLA120, PM25RLA120, PM50CLA120, PM50RLA120, PM75CLA120, PM75RLA120 PM50CLB060, PM50RLB060, PM75CLB060, PM75RLB060, PM25CLB120, PM25RLB120, PM50CLB120, PM50RLB120, PM75CLB120, PM75RLB120
Casing L3 Casing L4
PM200CLA060, PM200RLA060, PM300CLA060, PM300RLA060 ,PM100CLA120 ,PM100RLA120, PM150CLA120, PM150RLA120 PM450CLA060, PM600CLA060, PM200CLA120, PM300CLA120, PM450CLA120
