Индустриални и железопътни DC / AC трифазни инвертори
  • Индустриални и железопътни DC / AC трифазни инвертори

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: PREMIUM

Индустриални и железопътни DC / AC трифазни инвертори

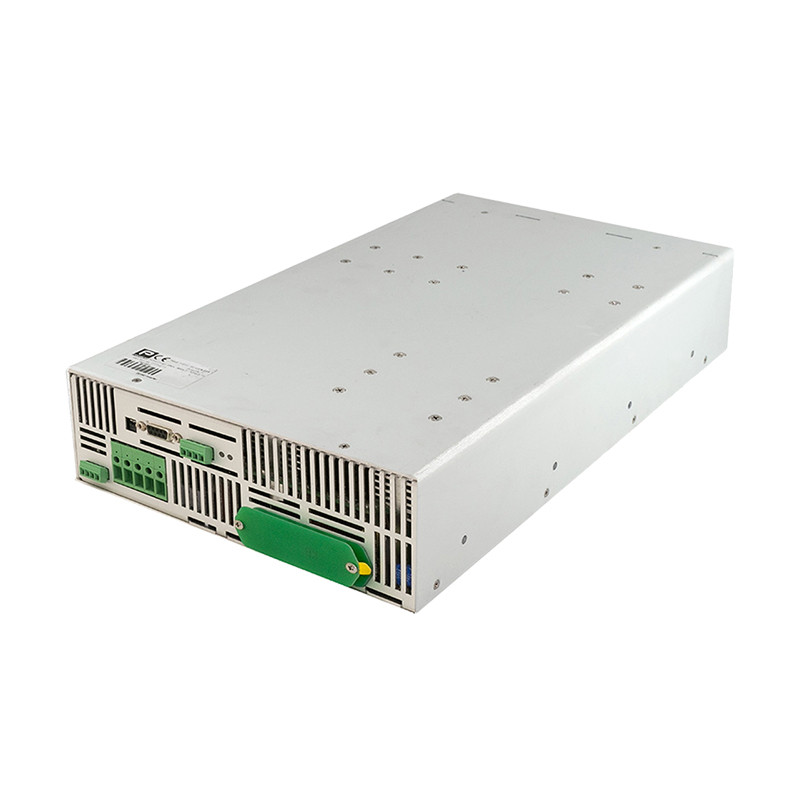

The ODX-3000 is a three phase 3000VA DC/AC inverter available both for a wide range of industrial and railway applications (under 50155 standard). It offers true sine wave output voltage, high power density and it is suitable to work under harsh environment conditions while optimizing efficiency.

The ODX-3000 series delivers up to 3000W at 230Vac and 400Vac and offers a great variety of input-output combinations while not compromising performance. It has been designed for chassis mounting and a rackmount kit is available as well. Cooling takes place through an internal fan and the series offers up to 92% efficiency.

The input and output are galvanically isolated and the status of the input and output voltage can be monitored through the contacts of two separate solid state relays. The ODX-3000 inverter features maximum average power protection as well as maximum output peak current protection. It also features a disable function for input undervoltage, which protects the batteries from harmful discharges.

Parameters can be set and monitored via RS232 through the PAM Tool available with all models.


KEY FEATURES
  • Sine wave output voltage
  • Suitable for motors control
  • Selectable output frequency: 50/60Hz
  • Adjustable output voltage
  • High input-output isolation 3000Vrms
  • Remote inhibit
  • Reverse phase
  • Remote control via RS232
  • Alarm by isolated relay contacts
  • Remote off opto-coupled
  • Optional railway version EN50155
  • Fire and smoke: EN45545-2 approved
  • Efficiency up to 92%
PRODUCT WARRANTY
  • 3 years for Industrial version.
  • 5 years for Railway version.
ACCESSORIES
  • Mounting brackets kit
  • 19″ rackmount tray kit (2U)

ModelInputOutputPowerOutput peak currentEfficiencyNo load input current
Arms 5sApk 10ms (Iopk)

7403

 24 Vdc 400 Vac 2400 VA 5.25A 11A 89% < 1.58 A

7404

 36 Vdc 400 Vac 3000 VA 6.6A 11A 90% < 1.05 A

7405

 48 Vdc 400 Vac 3000 VA 6.6A 11A 91% < 0.79 A

7406

 72 Vdc 400 Vac 3000 VA 6.6A 11A 91% < 0.52 A

7407

 110 Vdc 400 Vac 3000 VA 6.6A 11A 92% < 0.34 A
