Производител: KIRA Leuchten

KE-LED-EA 40 ..- p | 230 V / 110V | LED флуоресцентна лампа

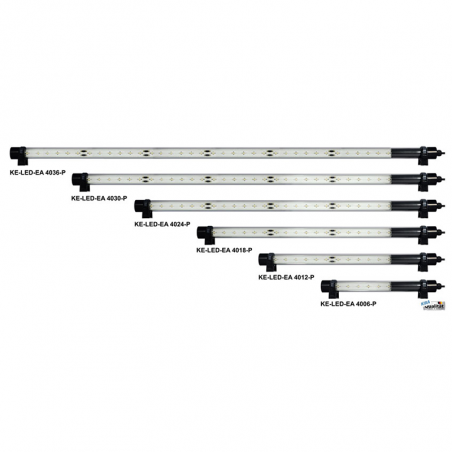

The modular design of the KE-LED-EA 40xx-P series gives you a consistent design for lighting applications where different mounting conditions are considered. The lamp is available with 6/12/18/24/30 or 36 POWER LEDs. This allows a luminaire length of at least 410mm up to 1250mm to be realized. Without an external ballast, it can be used as an industrial, machine and system luminaire.

Technical Data KE-LED-EA 4006-P / 4012-P / 4018-P / 4024-P / 4030-P / 4036-P
Illuminant POWER LED with 6, 12, 18, 24, oder 30 modules / 5000 Kelvin
Power 4006: 6 W | 4012: 12 W | 4018: 16 W | 4024: 24 W | 4030: 24 W | 4036:
Luminous flux 4006: 600 Lm | 4012: 1200 Lm | 4018: 1800 Lm | 4024: 2400 Lm | 4030: 3000 Lm | 4036: 3600 Lm
Voltage 230V or 110V
Protective tube polycarbonate, 40mm Ø
Diffusor optional available (onjly for model 4006 / 4012 / 4018)
End caps PA 6.6, black (Polyamid)
Fixing clamps 2 fixing clamps
Cable 5 m H05RN-F 2 x 1,0 mm2 (other lengths on request)
Plug without
Protection (IP) IP65
Protection class II
Length 4006: 410mm | 4012: 625mm| 4018: 840mm | 4024: 1055mm | 4030: 1270mm | 4036: 1460mm
Ambient temperature range -10°C - +40°C

Color of light 5000k

Type - 230 Volt Quantity
POWER LED		 Voltage Plug Weight Art.-No.
KE-LED-EA 4006-P / 230 6 230 V AC w/o 0,65 kg 131790
KE-LED-EA 4012-P / 230 12 230 V AC w/o 0,75 kg 131791
KE-LED-EA 4018-P / 230 18 230 V AC w/o 0,85 kg 131792
KE-LED-EA 4024-P / 230 24 230 V AC w/o 0,95 kg 131793
KE-LED-EA 4030-P / 230 30 230 V AC w/o 1,05 kg 131794
KE-LED-EA 4036-P / 230 36 230 V AC w/o 1,15 kg 131795



Type - 110 Volt Quantity
POWER LED		 Voltage Plug Weight Art.-No.
KE-LED-EA 4006-P / 110 6 110V AC/DC w/o 0,65 kg 131796
KE-LED-EA 4012-P / 110 12 110V AC/DC w/o 0,75 kg 131797
KE-LED-EA 4018-P / 110 18 110V AC/DC w/o 0,85 kg 131798
KE-LED-EA 4024-P / 110 24 110V AC/DC w/o 0,95 kg 131799
KE-LED-EA 4030-P / 110 30 110V AC/DC w/o 1,05 kg 131800
KE-LED-EA 4036-P / 110 36 110V AC/DC w/o 1,15 kg 131801



Type Dimensions in mm
a b c d e f g h
KE-LED-EA 4006-P 410 30 230 120 30 40 43 20
KE-LED-EA 4012-P 620 30 440 120 30 40 43 20
KE-LED-EA 4018-P 830 30 650 120 30 40 43 20
KE-LED-EA 4024-P 1040 30 860 120 30 40 43 20
KE-LED-EA 4030-P 1250 30 1070 120 30 40 43 20
KE-LED-EA 4036-P 1460 30 1280 120 30 40 43 20

Accesories

Type Description Art.-No.
BFK D40 Fixing clamp 290056
40 KM Fixation clamp with magnet 291600
STA 40 Metal fixture with fixing clamps BFK 291402
Folia rozpraszająca 06 Diffuser film, for homogeneous, glare-free light distribution, suitable for 4006 291691
Folia rozpraszająca 12/18 Diffuser film, for homogeneous, glare-free light distribution, suitable for 4012/4018 291692
Folia rozpraszająca 24/30 Diffuser film, for homogeneous, glare-free light distribution, suitable for 4024/4030 291693
SFO-LED-MOD 06/12 Protective foil for KE-LED-EA 4006/4012, to preserve the protective tube in case of high degree of contamination 292704
SFO-LED-MOD 18/24 Protective foil for KE-LED-EA 4018/4024, to preserve the protective tube in case of high degree of contamination 292705
SFO-LED-MOD 30/36 Protective foil for KE-LED-EA 4030/4036, to preserve the protective tube in case of high degree of contamination 292706
SELV Trafos see standard accessoires


Type Art-No. for tube- Dimensions in mm Number (f)
diameter a b c d e mounting holes
BFK D40 290056 40mm 67 25 20 40,4 58 1x


2 fixing clamps included in the scope of delivery
