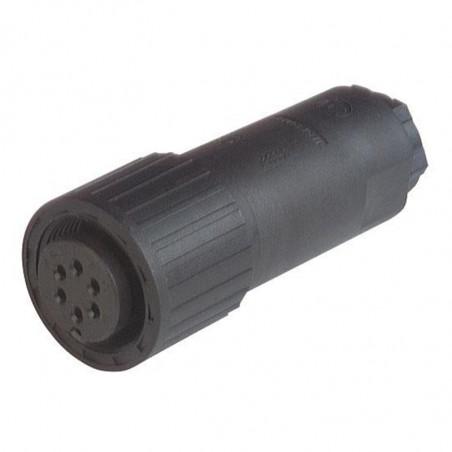

Кръгли конектори серия CM със салник на кабел
  • Кръгли конектори серия CM със салник на кабел

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Hirschmann

Кръгли конектори серия CM със салник на кабел


Junction description socket  socket  socket
Junction type CM 06 EA 14S-2 S CM 06 EA 14S-5 S CM 06 EA 14S-6 S
Symbol:  932-457-100 932-841-100 932-458-100
Contacts quantity 4 5 6
Gland PG 11 PG 11 PG 11
Wire diameter: od 8 mm do 10 mm od 8 mm do 10 mm od 8 mm do 10 mm
Wire section max. 1 mm2  max. 1 mm2  max. 1 mm2
Casing colour black black black
Drawing:
Technical data:
PIN dimension: 1,6 mm 1,6 mm 1,6 mm
Operating voltage DC 50 V, AC 50V DC 50 V, AC 50V DC 50 V, AC 50V
Current DC 10 A, AC 10 A DC 10 A, AC 10 A DC 10 A, AC 10 A
Cable connection  soldering soldering soldering
IP: IP 67  IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag Ag
Casing material: PA 66-GF 25 PA 66-GF 25 PA 66-GF 25
Ring: NBR NBR NBR
Certificates:
 UL, MIL-C 5015  UL, MIL-C 5015  UL, MIL-C 5015
Package: 100 pce. 100 pce. 100 pce.
Matching joints: CM 02 E 14S-2 P CM 02 E 14S-5 P CM 02 E 14S-6 P



Junction description socket  socket
Junction type CM 06 EA 14S-61 S CM 06 EA 20-7 S
Symbol:  932-460-100 932-842-100
Contacts quantity 6 + PE 8
Gland PG 11 PG 13,5
Wire diameter: od 8 mm do 10 mm od 10 mm do 12 mm
Wire section max. 1 mm2  max. 1,5 mm2
Casing colour black black
Drawing:
Technical data:
PIN dimension: 1,6 mm 1,6 mm
Operating voltage DC 50 V, AC 50V DC 50 V, AC 50V
Current DC 10 A, AC 10 A DC 10 A, AC 10 A
Cable connection  soldering soldering
IP: IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag
Casing material: PA 66-GF 25 PA 66-GF 25
Ring: NBR NBR
Certificates:
 UL, MIL-C 5015  UL, MIL-C 5015
Package: 100 pce. 100 pce.
Matching joints: CM 02 E 14S-61 P, CM 02 L 14S-61 P,
CM 02 L 14S-61 P F		 CM 02 EA 20-7 P



Junction description socket  socket
Junction type CM 06 EA 20-27 S CM 06 EA 20-29 S
Symbol:  933-067-100 933-068-100
Contacts quantity 14 17
Gland PG 16 PG 16
Wire diameter: 12 mm - 14 mm od 12 mm do 14 mm
Wire section max. 1,5 mm2  max. 1,5 mm2
Casing colour black black
Drawing:
Technical data:
PIN dimension: 1,6 mm 1,6 mm
Operating voltage DC 50 V, AC 50V DC 50 V, AC 50V
Current DC 5 A, AC 5 A DC 4 A, AC 4 A
Cable connection  soldering soldering
IP: IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag
Casing material: PA 66-GF 25 PA 66-GF 25
Ring: NBR NBR
Certificates:
 UL, MIL-C 5015  UL, MIL-C 5015
Package: 100 pce. 100 pce.
Matching joints: CM 02 EA 20-27 P CM 02 EA 20-29 P
