Производител: Hirschmann

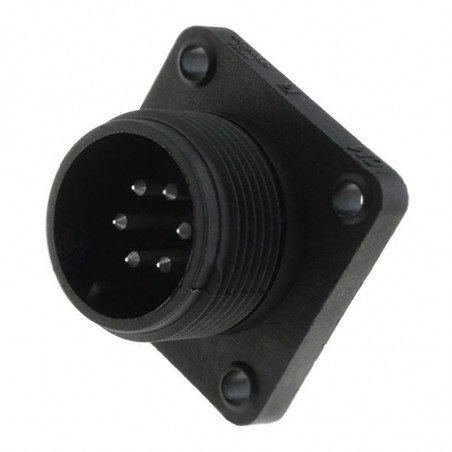

Кръгли съединители серия CM монтирани на панел


Junction description: plug for panel assembly: plug for panel assembly: plug for panel assembly:
Junction type: CM 02 E 14S-2 P CM 02 E 14S-5 P CM 02 E 14S-6 P
Symbol:  932-449-100 932-843-100 932-451-100
Contacts quantity: 4 5 6
Gland
Wire diameter:
Wire section max. 1 mm2  max. 1 mm2  max. 1 mm2
Casing colour black black black
Drawing:
Technical data:
PIN dimension: 1,6 mm 1,6 mm 1,6 mm
Operating voltage: DC 50 V, AC 50V DC 50 V, AC 50V DC 50 V, AC 50V
Current: DC 10 A, AC 10 A DC 10 A, AC 10 A DC 10 A, AC 10 A
Cable connection:  soldering soldering soldering
IP: IP 67  IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag Ag
Casing material: PA 66-GF 25 PA 66-GF 25 PA 66-GF 25
Ring: NBR
Certificates:
 UL, MIL-C 5015  UL, MIL-C 5015  UL, MIL-C 5015
Package: 100 pce. 100 pce. 100 pce.
Matching joints: CM 06 E 14S-2 S,
gasket: CM 02 D 14S		 CM 06 EA 14S-5 S,
gasket: CM 02 D 14S		 CM 06 EA 14S-6 S,
gasket: CM 02 D 14S



Junction description: plug for panel assembly: plug for panel assembly: plug for panel assembly:
Junction type: CM 02 E 14S-61 P CM 02 L 14S-61 P Metal CM 02 L 14S-61 P F
Symbol:  932-455-100 934-390-001 932-988-100
Contacts quantity: 6 + PE 6 + PE 6 + PE
Gland
Wire diameter:
Wire section max. 1 mm2    max. 1 mm2
Casing colour black metal black
Drawing:
Technical data:
PIN dimension: 1,6 mm 1,6 mm 1,6 mm
Operating voltage: DC 50 V, AC 50V DC 50 V, AC 50V DC 50 V, AC 50V
Current: DC 10 A, AC 10 A DC 10 A, AC 10 A DC 2 A, AC 2 A
Cable connection:  soldering soldering soldering
IP: IP 67  IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag Ag
Casing material: PA 66-GF 25 Zn Al./Ni PA 66-GF 25
Ring:
Certificates:
 UL, MIL-C 5015  UL, MIL-C 5015  UL, MIL-C 5015
Package: 100 pce. 100 pce. 100 pce.
Matching joints: CM 06 EA 14S-61 S,
gasket: CM 02 D 14S		 CM 06 EA 14S-61 S,
gasket: CM 02 D 14S		 CM 06 EA 14S-61 S,
gasket: CM 02 D 14S



Junction description: plug for panel assembly: plug for panel assembly
Junction type: CM 02 L 14S-61 P F Metal CM 02 E 20-7 P
Symbol:  934-391-001 932-845-100
Contacts quantity: 6 + PE 8 + PE
Gland
Wire diameter:
Wire section   max. 1,5 mm2
Casing colour metal black
Drawing:
Technical data:
PIN dimension: 1,6 mm 1,6 mm
Operating voltage: DC 50 V, AC 50V DC 50 V, AC 50V
Current: DC 2 A, AC 2 A DC 10 A, AC 10 A
Cable connection:  soldering soldering
IP: IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag
Casing material: Zn Al./Ni PA 66-GF 25
Ring:
Certificates:
 UL, MIL-C 5015  UL, MIL-C 5015
Package: 100 pce. 100 pce.
Matching joints: CM 06 EA 14S-61 S,
gasket: CM 02 D 14S		 CM 06 EA 20-7S,
gasket: CM 02 D 20



Junction description: plug for panel assembly plug for panel assembly
Junction type: CM 02 E 20-27 P CM 02 E 20-29 P
Symbol:  933-062-100 933-063-100
Contacts quantity: 14 + PE 17 + PE
Gland
Wire diameter:
Wire section max. 1,5 mm2  max. 1,5 mm2
Casing colour black black
Drawing:
Technical data:
PIN dimension: 1,6 mm 1,6 mm
Operating voltage: DC 50 V, AC 50V DC 50 V, AC 50V
Current: DC 10 A, AC 10 A DC 4 A, AC 4 A
Cable connection:  soldering soldering
IP: IP 67  IP 67
Operation temperature:  -40 C do  90 C  -40 C do  90 C
Contact material:
Contact surface: Ag Ag
Casing material: PA 66-GF 25 PA 66-GF 25
Ring:
Certificates:
 UL, MIL-C 5015  UL, MIL-C 5015
Package: 100 pce. 100 pce.
Matching joints: CM 06 EA 20-27S, gasket: CM 02 D 20 CM 06 EA 20-29S, gasket: CM 02 D 20
