Производител: Victron energy

VICTRON ENERGY PHOENIX зарядно устройство за зарядно устройство

Adaptive 4-stage charge characteristic: bulk – absorption – float – storage
The Phoenix charger features a microprocessor controlled ‘adaptive’ battery management system that can be preset to suit different types of batteries. The ‘adaptive’ feature will automatically optimise the process relative to the way the battery is being used.

The right amount of charge: variable absorption time
When only shallow discharges occur (a yacht connected toshore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the batteryis completely recharged.

Preventing damage due to excessive gassing: the BatterySafe mode (see fig. 2 below)
If, in order to quickly charge a battery, a high chargecurrent in combination with a high absorption voltage has been chosen, the Phoenix charger will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached (see the charge curve between 14,4 V and 15,0 V in fig. 2 below).

Less maintenance and aging when the battery is not in use: the Storage mode (see fig. 1 [&] 2 below)
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

Phoenix Battery Charger

Phoenix Battery Charger

Phoenix charger 12V 30A

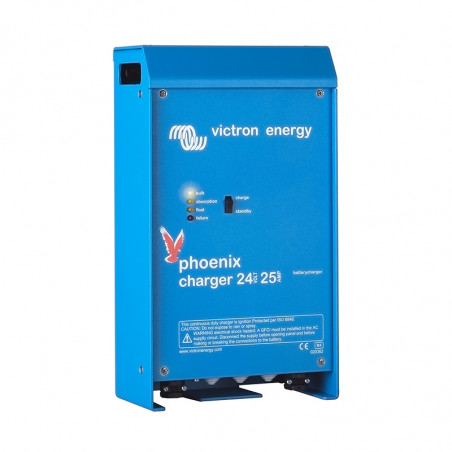

Phoenix charger 24V 25A

To increase battery life: temperature compensation
Every Phoenix charger comes with a battery temperaturesensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected.
Battery voltage sense
In order to compensate for voltage loss due to cable resistance, Phoenix chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)
The chargers will accept a 90-400V DC supply.

Computer interface
Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port. Together with our VEConfiguresoftware, which can be downloaded free of charge fromour website www.victronenergy.com and the data link MK1b (see accessories), all parameters of the chargers can be customised.

Learn more about batteries and battery charging
To learn more about batteries and charging batteries, please refer to our book ‘Energy Unlimited’ (available free of charge from Victron Energy and downloadable from www.victronenergy.com). For more information about adaptive charging please look under Technical Information on our website.

Charge curves: up to the gassing voltage (wykres.1), and exceeding the gassing voltage (wykres.2)

Phoenix Charger 12/30 12/50 24/16 24/25
Input voltage range (V AC) 90-265
Input voltage range (V DC) 90-400
Frequency (Hz) 45-65
Power factor 1
Charge voltage 'absorption' (V DC) 14,4 14,4 28,8 28,8
Charge voltage 'float' (V DC) 13,8 13,8 27,6 27,6
Storage mode (V DC) 13,2 13,2 26,4 26,4
Charge current house batt. (A) (2) 30 50 16 25
Charge current starter batt. (A) 4 4 4 4
Charge characteristic 4 stage adaptive
Battery capacity (Ah) 100-400 200-800 100-200 100-400
Temperature sensor V V V V
Can be used as power supply V V V V
Forced cooling V V V V
Protection (1) a,b,c,d
Operating temp. range -20 to 60°C (0 - 140°F)
Humidity (non condensing) max 95%
ENCLOSURE
Material [&] Colour aluminium (blue RAL 5012)
Battery-connection M6 studs
AC-connection screw-clamp 4 mm² (AWG 11)
Protection category IP 21
Weight kg (lbs) 3,8 (8)
Dimensions (hxwxd in mm and inches) 350x200x108 mm (13.8x7.9x4.3 inch)
STANDARDS
Safety EN 60335-1, EN 60335-2-29
Emission Immunity EN 55014-1, EN 61000-3-2,
Automotive Directive EN 55014-2, EN 61000-3-3
Vibration IEC68-2-6:10-150Hz/1.0G
1) Protection 2) Up to 40 °C (100 °F) ambient
a)Output short circuit b)Battery reverse polarity detection c) Battery voltage too high d) Temperature too high



Battery Alarm
An excessively high or low battery voltage is indicated by an audible and visual alarm, and potential free contacts.



Phoenix Charger Control
The PCC panel provides remote control and monitoring of the charge process with LED indication of the charger status. In addition, the remote panel also offers output current adjustment that can be used to limit the output current and thus the power drawn from the AC supply. This is particularly useful when operating the charger from limited shore power or small gensets. The panel can also be used to change the battery charging parameters.
The brightness of the LED’s is automatically reduced during night time.
Connection to the charger is with a standard UTP – cable.






BMV 600S Battery Monitor
The BMV 600S Battery Monitor features an advanced microprocessor control system combined with high resolution measuring systems for battery voltage and charge/discharge current. Besides this, the software includes complex calculation algorithms, like Peukert’s formula, to exactly determine the state of charge of the battery. The BMV 600S selectively displays battery voltage, current, consumed Ah or time to go
