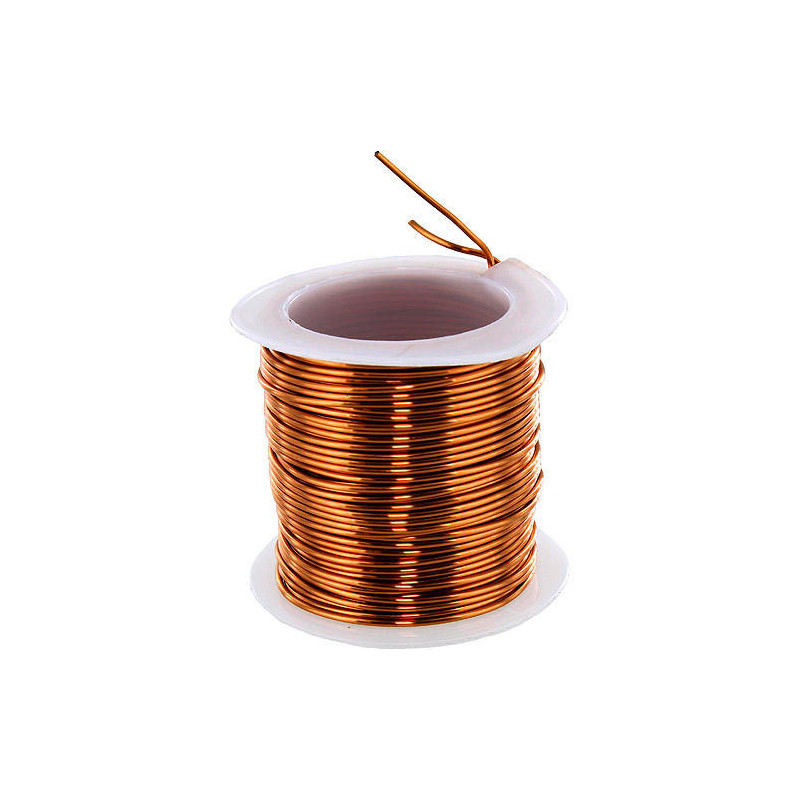

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Медни проводници



DACSOLD F

DACSOLD H

DACTHERM H

Description

Lacquer copper wire.

Lacquer copper wire.

Lacquer copper wire.

Thermal class

155°C

180°C

180°C

Insulation type

Polyurethane

Polyurethane

Polyester imid

Section

Ø

Ø

Ø□

Dimensions

0,045mm- 1,2mm

0,15mm-2mm

0,045mm - 6mm,
4mm2 - 40mm2

Grade

1,2,3

1,2,3

1,2,3

Certificate UL

-

E192088



Main characteristic

Solder at 290°C,waterproof, colours: red, green, yellow

Solder at 290°C,waterproof, colours: red, green, yellow

High temperature resistant

Application

 1 - small motors
2 - transformers
3 - relays
4 - electro valves

1 - small motors
2 - transformers
3 - relays

 1 - power motors
2 - transformers
3 - electro valves
4 - voltage controllers

Caution
Ø- circle wire □- profile wire



DACTERM 200

DACSOLD H
Thermo special

Description

Lacquer copper wire.

Lacquer copper wire.

Thermal class

200°C

180°C

Insulation type

Poliomyelitides + Poliamid

Polyurethane + Poliamid

Section

Ø□

 Ø

Dimensions

0,045mm - 6mm, 4mm2 - 40mm2

0,25mm - 2mm

Grade

1,2,3

1B, 2B

Certyficate UL

-

-

Main characteristic

High temperature resistant,high withstand for chemicals, colour: red and green

Thermobond,

Application

1 - hermetic aggregates
2 - power motors
3 - voltage regulators
4 - vehicle breakers

1 - power motors
2 - transformers
3 - electro valves
4 - voltage regulators

Caution
Ø- circle wire □- profile wire



DACTERM HF

DACTERM C TERMOSPAWALNY

DAC SUPERTERM

Description

Lacquer copper wire for inverters

Lacquer copper wire.

Lacquer copper wire.

Thermal class

200°C

200°C

240°C

Insulation type

Polyester imid + Poliamid imid special+ Poliamid imid

Polyester imid + Poliamid imid special + Poliamid thermobond

Poliamid

Section

Ø

Ø

Ø

Dimensions

0,25mm-6mm

0,3mm-3mm

0,2mm - 6mm

Grade

1,2

1,2

1B, 2B

Homologacja UL

-

E192088



Main characteristic

Breakdown resistant, high temperature resistant, good withstand for chemicals

Thermobond

Breakdown resistant, high temperature resistant, good withstand for chemicals

Application

1 -inverters
2 - servo system

1 - motors
2 - transformers
3 - loudspeakers 4 - breakers

1 - special motors

Caution
Ø- circle wire



DACGLASS

DACTHERM GLASS

DACTHERM BIGLASS

DACNORM

Description

copper wire in braid from glass fibre

copper wire in braid from glass fibre + lacquer

copper wire in 2 braids from glass fibre + lacquer

Copper wire coverd with Nomexem

Thermal class

180°C

180°C

180°C

180°C

Insulation type

fiber glass + fibre glass + polyester

Polyester imid + fibre glass + polyester

Polyester imid + fiber glass + fibre glass + polyester

Nomex

Section

Ø□

Ø□

Ø□

Ø□

Dimensions

0,8mm-10mm, 8mm2-60mm2

0,8mm-10mm, 8mm2- 40mm2

0,8mm-10mm, 8mm2 - 40mm2

2mm-8mm, 8mm2-60mm2

Grade

G2

2G1

2G2

0%-75%

Main characteristic

High temperature resistant

High temperature resistant

High temperature resistant

High temperature, transformer oil, humidity, chemicals resistant

Application

1 -thermocouples
2 - special motors
3 - electromagnetic grabs
4 - transformers
5 - generators

1 - special safety motors
2 - generators
3 - alternators

1 - special safety motors
2 - generators
3 - alternators

1 - transformers
2 - DC traction machines
3 - special motors

Caution
Ø- circle wire □- profile wire
