Производител: GMC-I PROSyS

MICRO-flex 1-фазни

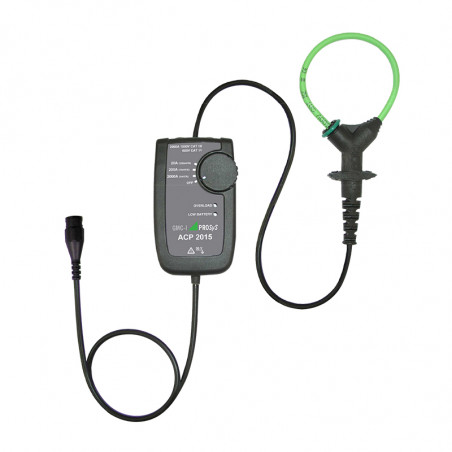

Flexible Rogowski measuring probes AC currents Series ACP 1000 and ACP 2000

Characteristic
  • Three selectable current ranges 10/100/1000A or 20/200/2000A
  • 3 Standard conductor diameters 50/70/100mm
  • Easy to insert probe in confined spaces
  • Multimeter and Oscilloscope versions
  • Wide dynamic range 100/200mA to 1000/2000A ACRMS
  • 1000V, CAT III, Pollution degree 2
  • Excellent response to rapid current changes
  • External power supply option
  • Compact lightweight design
  • No magnetic hysteresis, saturation or non linearity

Typical applications

  • Connection to most measuring instruments includingmultimeters, oscilloscopes or recording devices
  • Development and servicing of power electronic equipment
  • Analysis of complex current waveforms
  • Analysis of harmonics, power measurements, measurement of peak loads in mains and in UPS.
  • Measurement of starting transients of electric motors

SPECIFICATIONS
MODEL

ACP 1000

ACP 1005

ACP 2005

ACP 2015
Current Ranges (RMS) 10 / 100 / 1000A 20 / 200 / 2000A
Output Sensitivity 100mV / 10mV / 1mV / A
Noise (AC rms) 0.1A (10A/100A), 1A (1000A) 0.08A 0.08A / 0.6A / 6A
Linearity ± 0.2% reading
Basic Accuracy ± 1% of reading ± 0.1A (10/100A) ± 1A (1000A) ± 1% of reading ± 0.2A (20/200A) ± 1A (2000A)
Conductor position sensitivity ± 2.5% reading
Frequency Range (-2dB) 20Hz to 20kHz 20Hz to 100kHz 20Hz to 1MHz
Phase shift (45 – 65Hz) <1 degree
Load Impedance > 100 kΩ
Output connection 0.5m lead terminated with 4mm
safety plugs		 0.5m coax terminated with safety
male BNC connector		 0.5m coax terminated with safety male BNC connector 0.5m coax terminated with safety
male BNC connector

Power supply

 battery Bacterial and external Power Supply Bacterial and external Power Supply Bacterial and external Power Supply

Technical data

ENVIRONMENTAL DATA

Operating temperature -20oC to +65oC
Temperature Coefficient ± 0.15% of reading peroC
Storage Temperature (without battery) -40oC to +75oC

POWER SUPPLY

Battery type 2 x AA MN 1500 LR6 Alkaline
Battery life 1000 hrs ACP 1000 ACP 2005
100 hrsn ACP 1005, ACP 2015
External Power Supply 3V / 100mA

MECHANICAL DATA

Dimensions (mm) 110 (W) x 65 (S) x 23 (G)
Probe cable diameter 6mm ø
Probe Conductor Diameters 50mm (2”), 70mm (3”) and 100mm (4”)
Cable length 2m (Probe to Integrator)




SAFETY

EN61010-2-032:2002,
EN 61010-031:2002
EN 61010-1:2001
1000V, Measurement Category III, Pollution Degree 2.

EMC Standard EN 61326-2-2:2006

MAXIMUM SAFE VOLTAGES

1000V AC RMS or DC 30V maximum between output and earth
All accuracies stated at 23°C ± 1°C (73.4°F ± 1.8°F)

DEGREE OF PROTECTION

P50 PROBE IP40 Integrator





High Accuracy and Wide Dynamic Range
Advanced coupling design results in minimal effect of external magnetic fields and off-centre conductor
positioning on probe accuracy.

EN 61010-2-032:2002 and EMC Conformance
Safety features provide the user with confidence when making measurements in hazardous voltage areas.
Conformance to EMC standards ensures high reliability through reduced susceptibility to electromagnetic
interference.




Dimensions [mm] and numbers

MICRO-flex 1-fazowe wymiary





Catalog number The loop diameter of the probe (S) [mm] Output type

ACP 1000/2

 50 4mm

ACP 1000/3

 70 4mm

ACP 1000/4

 100 4mm

ACP 1005/2

 50 BNC

ACP 1005/3

 70 BNC

ACP 1005/4

 100 BNC

ACP 2005/2

 50 BNC

ACP 2005/3

 70 BNC

ACP 2005/4

 100 BNC

ACP 2005/2_4mm

 50 4mm

ACP 2005/3_4mm

 70 4mm

ACP 2005/4_4mm

 100 4mm

ACP 2015/2

 50 BNC

ACP 2015/3

 70 BNC

ACP 2015/4

 100 BNC
