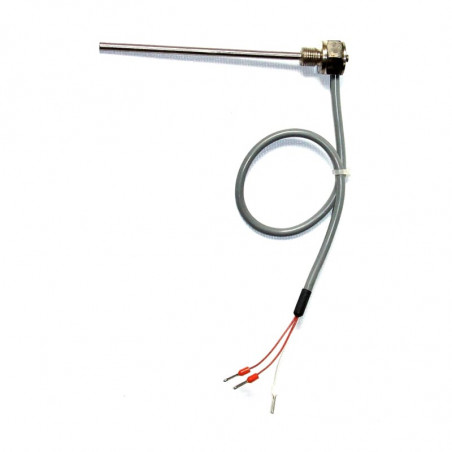

Миниатюрен съпротивителен ъглов сензор ACT-15

Angular mini resistant sensor, used for temperature measurement in small machines elements up to +250°C. Small dimensions allow for fast and precise measurement, and additional stub pipe allow for fast and easy assembly. Connection cable is available in any length.

SPECIFICATION:

SENSOR TECHNICAL PARAMETERS
Measurement resistor Version Characteristic Measurement range Accuracy class Max measurement current Connection type
1xPt100
2xPt100		 normal shockproof according to PN-EN-60751 from -200°C
up to 600°C		 B 8 mA 2 cables
A 5 mA 3, 4
cables
-50°C+150°C 1/3 B DIN 2 mA

Shield
Shield diameter
d[mm]

material according to
WNr/ DIN

 material according to
ASTM /AISI

length
L[mm]
Ø3, Ø4, Ø5 , Ø6 1.4571 316 Ti arbitrary

Stub pipe D
M10x1, M12x1
G 1/2’’

Connection cable
Type diameter Type Composition Max operation temperature Długość LK
2-cables Ø 2,9 L2GGD-2x0.22mm2 fibre glass +400°C arbitrary
3, 4 -cables Ø 3,1 L4GGD-4x0.22mm2 fibre glass +400°C
3, 4 -cables Ø 2,9 L4TT-4x0.22mm2 Teflon, Teflon +260°C
3, 4 cables Ø 4 L4TFDT-4x0.22mm2 Teflon, foil,Teflon +260°C



Marking


A. Resistor type
 A

Single Pt100
 1xPt100

Double Pt100
 2xPt100
B. Accuracy class
 B

B
 B

A
 A

1/3 B DIN
 1/3 B DIN
C. Shield diameter d
 C

Ø3
3

Ø4
 4

Ø5
 5

Ø6
 6
D. Connection type
 D

M10x1
 M10x1

M12x1
 M12x1

G 1/2''
 G 1/2
E. length
 E

L
 give in mm
F. Connection and cable type
 F

2 cables (L2GGD)
 2p-L2GGD

3 cables (L4GGD)
 3p-L4GGD

4 cables (L4GGD)
 4p-L4GGD

3 cables (L4TT)
 3p-L4TT

4 cables (L4TT)
 4p-L4TT

3 cables (L4TFDT)
 3p-L4TFDT

4 cables (L4TFDT)
 4p-L4TFDT
G. Cable length
 G

LK
 give in mm
H.Shield material
 H
  normal Z

shockproof
 W
