Миниатюрни конектори от 3 до 8 полюса
  • Миниатюрни конектори от 3 до 8 полюса

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Миниатюрни конектори от 3 до 8 полюса


250 V 4 kV/3, 10 A
  IP 54
IP 65

3-poles + grounding
plastic casing

400V/4kV, 10 A
metal casing250 V/400 V/4 kV, 10 A

    wire section Certificates Insulated length Material Package. Catalogue number
Contacts screw Socket 0,5-2,5mm2

0,5-2,5mm2
4 mm Nickel(3-pol) Silvered(4-pol.) 10 73.300.0353.0
Pin 0,2-1,5mm2 4 mm Nickel(3-pol.) Silvered(4-pol.) 10 73.310.0353.0
Contacts clamps Socket
without Contacts
0,2-1,5mm2 4 mm   10
Pin
without Contacts
    4mm   10
  Thread size   Gland type Material Package.

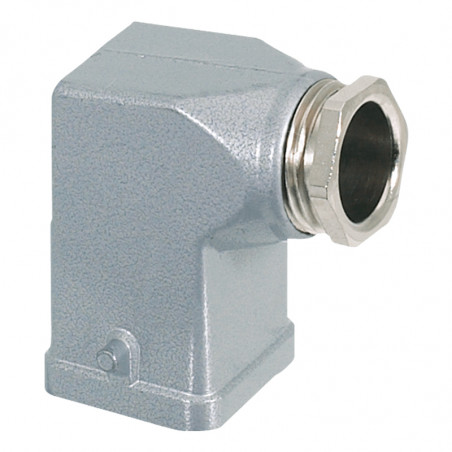

M 20 Angular cover 0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.350.0736.0 76.350.0736.1 76.350.0760.1
M 20 Straight cover 0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.352.0736.0 76.352.0736.1 76.352.0760.1

M 20 Cover with clamp lever and gland  0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.372.0736.0 76.372.0736.1 76.372.0760.1
  Open base with clamp lever   Metal
Plastic
10
10
76.320.0729.0 76.320.0753.0
  Open angular base with clamp lever   Metal
Plastic
10
10
76.321.0729.0 76.321.0753.0
M 20 Closed base with clamp lever
0 with gland
1 with thread for gland
1 with thread for gland

Metal
Metal
Plastic

10
10
10
76.322.0736.0 76.322.0736.1 76.322.0760.1


4-poles + grounding plastic casing 250V/4kV, 10 A metal casing250V/4kV, 10 A
    wire section Certificates Insulated length Material Package. Catalogue number
Contacts screw Socket 0,5-2,5 mm2

0,5-2,5mm2
4 mm Nickel(3-pol) Silvered(4-pol.) 10 73.300.0453.0
Pin 0,2-1,5mm2 4 mm Nickel(3-pol.) Silvered(4-pol.) 10 73.310.0453.0
Contacts clamps Socket
without Contacts
0,2-1,5mm2 4 mm   10
Pin
without Contacts
    4mm   10
  Thread size   Gland type Material Package.
M 20 Angular cover 0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.350.0736.0 76.350.0736.1 76.350.0760.1
M 20 Straight cover 0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.352.0736.0 76.352.0736.1 76.352.0760.1

M 20
Cover with clamp lever and gland
0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.372.0736.0 76.372.0736.1 76.372.0760.1
  Open base with clamp lever   Metal
Plastic
10
10
76.320.0729.0 76.320.0753.0
  Open angular base with clamp lever   Metal
Plastic
10
10
76.321.0729.0 76.321.0753.0
M 20 Closed base with clamp lever 0 with gland
1 with thread for gland
1 with thread for gland

Metal
Metal
Plastic

10
10
10
76.322.0736.0 76.322.0736.1 76.322.0760.1


7-poles + grounding plastic casing 250V/4kV, 10 A metal casing50V/0,8kV, 10 A
    wire section Certificates Insulated length Material Package. Catalogue number
Contacts screw Socket 0,5-2,5 mm2

0,5-2,5mm2
4 mm Nickel(3-pol) Silvered(4-pol.) 10
Pin 0,2-1,5mm2 4 mm Nickel(3-pol.) Silvered(4-pol.) 10
Contacts clamps Socket
without Contacts
0,2-1,5mm2 4 mm   10 73.700.0753.0
Pin
without Contacts
    4mm   10
  Thread size   Gland type Material Package.
M 20 Angular cover 0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.350.0736.0 76.350.0736.1 76.350.0760.1
M 20 Straight cover 0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.352.0736.0 76.352.0736.1 76.352.0760.1

M 20 Cover with clamp lever and gland 0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.372.0736.0 76.372.0736.1 76.372.0760.1
  Open base with clamp lever   Metal
Plastic
10
10
76.320.0729.0 76.320.0753.0
  Open angular base with clamp lever   Metal
Plastic
10
10
76.321.0729.0 76.321.0753.0
M 20 Closed base with clamp lever 0 with gland
1 with thread for gland
1 with thread for gland

Metal
Metal
Plastic

10
10
10
76.322.0736.0 76.322.0736.1 76.322.0760.1


8-poles
plastic casing
50V/0,8kV, 10 A metal casing50V/0,8kV, 10 A
    wire section Certificates Insulated length Material Package. Catalogue number
Contacts screw Socket 0,5-2,5mm2

0,5-2,5mm2
4 mm Nickel(3-pol) Silvered(4-pol.) 10
Pin 0,2-1,5mm2 4 mm Nickel(3-pol.) Silvered(4-pol.) 10
Contacts clamps Socket
without Contacts
0,2-1,5mm2 4 mm   10 73.700.0853.0
Pin
without Contacts
    4mm   10 73.710.0853.0
  Thread size   Gland type Material Package.
M 20 Angular cover 0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.350.0736.0 76.350.0736.1 76.350.0760.1
M 20 Straight cover 0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.352.0736.0 76.352.0736.1 76.352.0760.1

M 20 Cover with clamp lever and gland 0 with gland
1 with thread for gland
1 with thread for gland
Metal
Metal
Plastic
10
10
10
76.372.0736.0 76.372.0736.1 76.372.0760.1
  Open base with clamp lever   Metal
Plastic
10
10

  Open angular base with clamp lever   Metal
Plastic
10
10
76.321.0729.0 76.321.0753.0
M 20 Closed base with clamp lever 0 with gland
1 with thread for gland
1 with thread for gland

Metal
Metal
Plastic

10
10
10
76.322.0736.0 76.322.0736.1 76.322.0760.1

Contacts for clamp version
Ømm2 Nrkatalogowy Opak. Ømm2 Nrkatalogowy Opak.
0,2 - 0,56 mm2 Cynowanie
0,5- 1,50 mm2 Złocenie
Kon. taśmowane 02.124.0900.0 5000
Kon. taśmowane 02.124.1400.0 5000
Kon.pojedyncze 02.124.0929.0 200
Kon. pojedyncze 02.124.1429.0 200
0,75- 1,50 mm2

Kon. taśmowane 02.124.1000.0 5000

Kon. pojedyncze 02.124.1029.0 200


0,2 - 0,56 mm2
0,5- 1,50 mm2
Kon. taśmowane 05.544.0900.0 5000
Kon. taśmowane 05.544.1400.0 5000
Kon. pojedyncze 05.544.0929.0 200
Kon. pojedyncze 05.544.1429.0 200
0,75- 1,50 mm2

Kon. taśmowane 05.544.1000.0 5000

Kon. pojedyncze 05.544.1029.0 200

  Narzędzie zaciskające 95.101.0800.0 1
  Szczęki „E" 05.502.2400.0 1
  Narzędzie wycigające „2" 05.502.3200.0 1
  Narzędzie wycigające 05.502.0000.0 1
Socket contac
pin contac

Accessories
Catalogue number Catalogue number
Protection cover Protection cover
without gasket for pin without gasket for socket
Plastic
07.417.6753.0
Metal
07.417.6729.0
Plastic
07.417.6853.0
Meta
07.417.6829.0
Assembly holes for closed version
