Производител: Microsemi

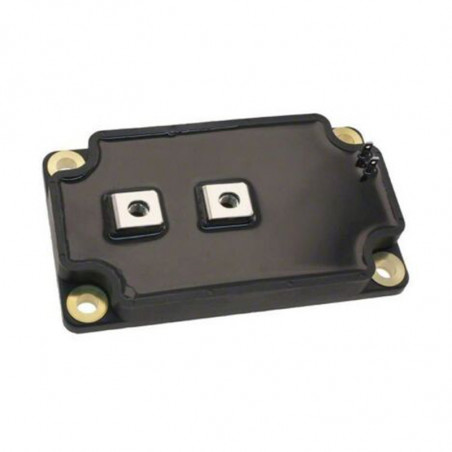

MOSFET модули - Microsemi

Features:
- Power MOS 7® MOSFETs
- Low RDSon
- Low input capacitance
- Low gate charge
- Avalanche energy rated
- High level of integration
- AlN substrate for improved thermal performance

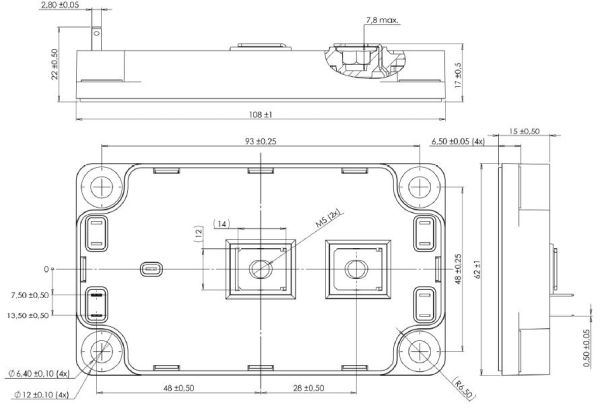

Casing:
casing microsemi

Table. Technical data

  Breakdown Voltage, Drain-Source (Gate Short-Circui (max)) Drain Current (dc) (max) On-State Resistance (Static Drain to Source) (max)

APTM08TAM04PG

75 90 4.2

APTM100A13DG

1000 49 130

APTM100A13SCG

- - 130

APTM100A13SG

1000 49 130

APTM100A18FTG

1000 33 180

APTM100A23STG

1000 26 230

APTM100A40FT1G

1000 16 400

APTM100AM90FG

1000 59 90

APTM100DA18CT1G

- - 180

APTM100DA18TG

1000 33 180

APTM100DA33T1G

1000 17 330

APTM100DAM90G

1000 59 90

APTM100DDA35T3G

1000 17 350

APTM100DSK35T3G

1000 17 350

APTM100DUM90G

1000 59 90

APTM100H18FG

1000 33 180

APTM100H35FT3G

1000 17 350

APTM100H35FTG

1000 17 350

APTM100H45FT3G

1000 14 450

APTM100H45SCTG

- - 450

APTM100H45STG

1000 13 450

APTM100H46FT3G

1000 14 460

APTM100SK18TG

1000 33 180

APTM100SK33T1G

1000 17 330

APTM100SKM90G

1000 59 90

APTM100TA35FPG

1000 17 350

APTM100UM45DAG

1000 160 45.3

APTM100UM45FAG

1000 160 45

APTM100UM60FAG

1000 97 60

APTM100UM65DAG

1000 110 65.2

APTM100UM65SAG

1000 110 65

APTM100UM65SCAVG

- - 65

APTM100VDA35T3G

1000 17 350

APTM10AM02FG

100 370 2.25

APTM10AM05FTG

100 207 4.5

APTM10DAM02G

100 370 2.25

APTM10DAM05TG

100 207 4.5

APTM10DDAM09T3G

100 100 9

APTM10DDAM19T3G

100 50 19

APTM10DHM05G

100 207 4.5

APTM10DHM09T3G

100 100 9

APTM10DSKM09T3G

100 100 9

APTM10DSKM19T3G

100 50 19

APTM10DUM02G

100 370 2.25

APTM10HM05FG

100 207 4.5

APTM10HM09FT3G

100 100 9

APTM10HM19FT3G

100 50 19

APTM10SKM02G

100 370 2.25

APTM10SKM05TG

100 207 4.5

APTM10TAM09FPG

100 100 9

APTM10TAM19FPG

100 50 19

APTM10TDUM09PG

100 100 9

APTM10UM01FAG

100 640 1.5

APTM10UM02FAG

100 430 2.25

APTM120A15FG

1200 45 150

APTM120A20DG

1200 37 200

APTM120A20SG

1200 37 200

APTM120A29FTG

1200 25 290

APTM120A65FT1G

1200 12 650

APTM120DA30CT1G

- - 300

APTM120DA30T1G

1200 23 300

APTM120DA56T1G

1200 13 560

APTM120DDA57T3G

1200 13 570

APTM120DSK57T3G

1200 13 570

APTM120DU15G

1200 45 150

APTM120H140FT1G

1200 6 1400

APTM120H29FG

1200 25 290

APTM120SK56T1G

1200 13 560

APTM120TDU57PG

1200 13 570

APTM120U10SAG

1200 116 100

APTM120U10SCAVG

- - 100

APTM120UM70DAG

1200 126 70

APTM120UM70FAG

1200 126 70

APTM120VDA57T3G

1200 13 570

APTM20AM04FG

200 300 4

APTM20AM05FG

200 250 5

APTM20AM06SG

200 225 6

APTM20AM08FTG

200 147 8

APTM20AM10FTG

200 125 10

APTM20AM10STG

200 125 10

APTM20DAM04G

200 300 4

APTM20DAM05G

200 250 5

APTM20DAM08TG

200 147 8

APTM20DHM08G

200 147 8

APTM20DHM16T3G

200 77 16

APTM20DUM04G

200 300 4

APTM20DUM05G

200 250 5

APTM20DUM08TG

200 147 8

APTM20HM08FG

200 147 8

APTM20HM10FG

200 125 10

APTM20HM16FTG

200 74 16

APTM20HM20FTG

200 62 20

APTM20HM20STG

200 62 20

APTM20SKM04G

200 300 4

APTM20SKM05G

200 250 5

APTM20SKM08TG

200 147 8

APTM20TAM16FPG

200 74 16

APTM20UM03FAG

200 434 3

APTM20UM04SAG

200 310 4

APTM50AM17FG

500 140 17

APTM50AM19FG

500 125 19

APTM50AM24SCG

- - 24

APTM50AM24SG

500 110 24

APTM50AM35FTG

500 70 35

APTM50AM38FTG

500 64 38

APTM50AM38SCTG

-   38

APTM50AM38STG

500 64 38

APTM50DAM17G

500 140 17

APTM50DAM19G

500 125 19

APTM50DDA10T3G

500 24 100

APTM50DDAM65T3G

500 37 65

APTM50DHM35G

500 70 35

APTM50DHM38G

500 64 38

APTM50DHM65T3G

500 32 65

APTM50DSK10T3G

500 24 100

APTM50DSKM65T3G

500 37 65

APTM50DUM17G

500 140 17

APTM50DUM35TG

500 70 35

APTM50H10FT3G

500 24 100

APTM50H14FT3G

500 18 140

APTM50H15FT1G

500 25 130

APTM50HM35FG

500 70 35

APTM50HM38FG

500 64 38

APTM50HM65FT3G

500 37 65

APTM50HM65FTG

500 37 65

APTM50HM75FT3G

500 32 75

APTM50HM75FTG

500 32 75

APTM50HM75SCTG

- - 75

APTM50HM75STG

500 32 75

APTM50SKM17G

500 140 17

APTM50SKM19G

500 125 19

APTM50TAM65FPG

500 37 65

APTM50UM09FAG

500 371 9

APTM50UM13SAG

500 250 13

APTM60A11FT1G

600 40 90

APTM60H23FT1G

600 20 190
