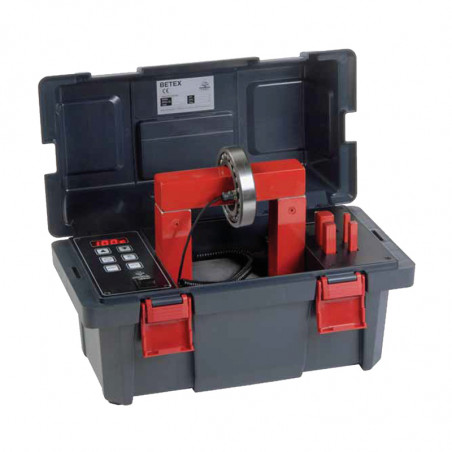

Индукционен нагревател 22 ELD преносим 3.6kva
  • Индукционен нагревател 22 ELD преносим 3.6kva

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Bega Special Tools

Индукционен нагревател 22 ELD преносим 3.6kva

Induction Heaters 22 ELD portable 3,6kVA Induction Heaters 22 ELD portable 3,6kVA Induction Heaters 22 ELD portable 3,6kVA

Specifications

Type BETEX

22 ELD Portable
Facility power 3.6 kVA
Voltage/Amp* 120V/15A
230V/16A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 7,10,14,20,40 in box
Yokes, standard mm/ set 2
Swivel arm -
Max. weight. ± kg - bearings 15
- other parts 10
Min. ID Ø: mm 10
Max. OD Ø :mm*A 240
Max. width: mm *B 120
Max. widthd at *C
horizontal heating: mm		 -
Cross section poles mm *D 40
Pole height mm 130
Temperature control
ºC/ F		 - max reach* 150ºC
- magnetic probe yes
- digital display yes
Time control - max. reach 0-30 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction -
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating -
Dimensions mm (lxbxh) 460x240x280
Weight heater kg
excl. Yokes		 21
(incl. yokesi)
Electric crane for yokes -
Alarm signal -
Mobile -



Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available power

Nagrzewnica indukcyjna 22 ELD przenośna 3,6kVA
