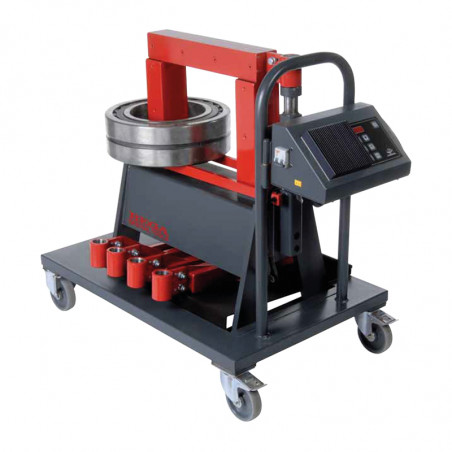

Индукционен нагревател 38 ZFD 12 KVA
  • Индукционен нагревател 38 ZFD 12 KVA

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Bega Special Tools

Индукционен нагревател 38 ZFD 12 KVA

Specifications

Type BETEX

38 ZFD
Facility power 12 kVA
Voltage/Amp* 400/500V
30A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 optional
Yokes, standard mm/ set 2 20,30,40,60,80
Swivel arm yes
Max. weight. ± kg - bearings 280
- other parts 200
Min. ID Ø: mm 30/Ø130
Max. OD Ø :mm*A 720/1080 *1
Max. width: mm *B 340
Max. widthd at *C
horizontal heating: mm		 290
Cross section poles mm *D 80
Pole height mm 340
Temperature control
ºC/ F		 - max reach* 240ºC*2
- magnetic probe yes
- digital display yes
Time control - max. reach 0-99 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction yes
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating yes
Dimensions mm (lxbxh) 1200x640x1000
Weight heater kg
excl. Yokes		 125
Electric crane for yokes -
Alarm signal optional
Mobile yes

*1 With adaptor yokes, only available for the Standard models
*2 On request: 350ºC with heavy duty sensor and extra isolation

Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available power
