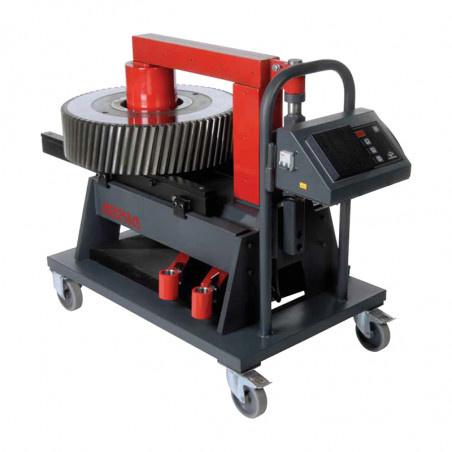

Индукционен нагревател 40 RMD турбо 12 kVA
  • Индукционен нагревател 40 RMD турбо 12 kVA

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Bega Special Tools

Индукционен нагревател 40 RMD турбо 12 kVA

Specifications

Type BETEX

40 RMD
TURBO
Facility power 12 kVA
Voltage/Amp* 400/500V
30A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 optional
Yokes, standard mm/ set 2 40,60,80
Swivel arm yes
Max. weight. ± kg - bearings 600
- other parts 450
Min. ID Ø: mm 60/Ø170
Max. OD Ø :mm*A 920
Max. width: mm *B 365
Max. widthd at *C
horizontal heating: mm		 305 adj. supports
320 fixed supports
Cross section poles mm *D Ø170/110x80
Pole height mm 305
Temperature control
ºC/ F		 - max reach* 240ºC*2
- magnetic probe yes
- digital display yes
Time control - max. reach 0-99 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction yes
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating yes
Dimensions mm (lxbxh) 1200x640x1000
Weight heater kg
excl. Yokes		 205 adj. supports
185 fixed supports
Electric crane for yokes -
Alarm signal optional
Mobile yes




Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available power

Nagrzewnica indukcyjna 40 RMD TURBO 12 kVA
