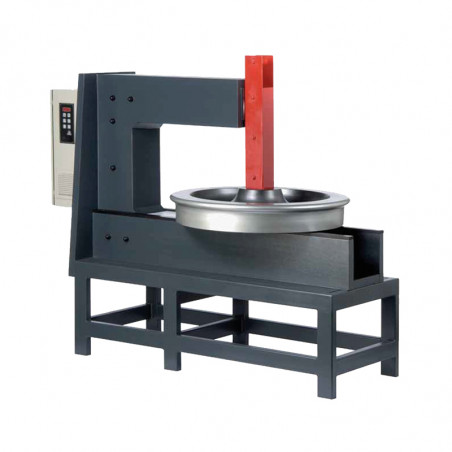

Гигантски стандарт EN DL-700 DL-100 48, 100 KVA индукционен нагревател
  • Гигантски стандарт EN DL-700 DL-100 48, 100 KVA индукционен нагревател

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Bega Special Tools

Гигантски стандарт EN DL-700 DL-100 48, 100 KVA индукционен нагревател

Specifications

Type BETEX

GIANT Standard
DL-700 / DL-1000
Facility power 48, 100 kVA
Voltage/Amp* 400/500V
120, 250A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 optional
Yokes, standard mm/ set 2 60,80,100,150,200*3
Swivel arm -
Max. weight. ± kg - bearings 3000/3500*3
- other parts 1500/2500*3
Min. ID Ø: mm 85/215*3
Max. OD Ø :mm*A 1700/2500*3
Max. width: mm *B 700/900*3
Max. widthd at *C
horizontal heating: mm		 730/990*3
Cross section poles mm *D 150/200*3
Pole height mm 740/1000*3
Temperature control
ºC/ F		 - max reach* 240/350ºC*2
- magnetic probe yes
- digital display yes
Time control - max. reach 0-99 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction yes
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating yes
Dimensions mm (lxbxh) 2150x900x2210*3
Weight heater kg
excl. Yokes		 800/1700 kg*3
Electric crane for yokes optional
Alarm signal optional
Mobile optional




*2 On request: 350ºC with heavy duty sensor and extra isolation
*3 Subject to power and execution
On request:other voltage/ amperage/ higher temperature up to 480ºC

Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available power

Nagrzewnica indukcyjna GIANT Standard en DL-700 DL-100 48, 100 kVA
