Производител: TM Induction Heating

Siretherm 10x индукционен нагревател

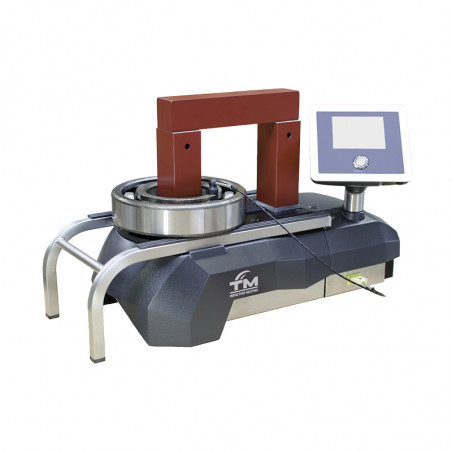

Induction heater SURETHERM 10X

The SURETHERM 10X may be small, but proves to be a powerful induction heater showing great flexibility.

Featuring an extendable work area, it is suitable for small-sized components (up to 50 kg) with a maximum diameter of 450mm when used with extension yokes.

Easy to use and highly portable, especially when used in combination with the optional carrying case. The ideal heating tool to use on location.



Specifications


Power Rating 3 kVA
Facility Power 110 - 230 V / 13 A / 50/60 Hz
Temperature Control Single / Dual
Weight 21 kg
Operating Area (WxH) 120 x 145 mm
Dimensions (LxBxH) 450 x 210 x 130 mm
Min. bore diameter (workpiece) ø 10 mm
Max. outer diameter (workpiece) ø 400 mm
Max. weight (workpiece) 50 Kg
