Производител: TM Induction Heating

Индуктивен нагревател suretherm pro 3x

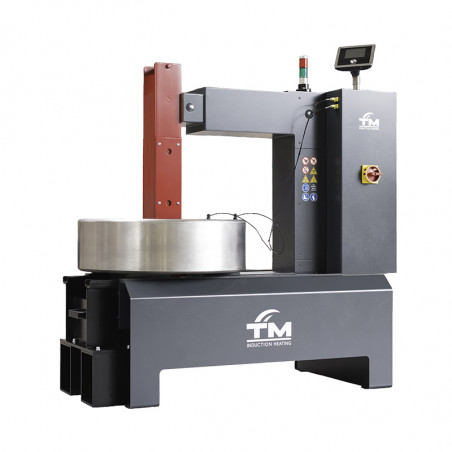

Induction heater SURETHERM PRO 3X

With our new generation of low frequency equipment, we offer the most efficient heaters for a wide range of applications.

Our SURETHERM and EASYTHERM series assure a safe heating process, where only the workpiece is heated. The heaters are suitable for sealed and shielded bearings, pre-greased bearings, bearings with polyamide cages, gearwheels, pulleys, couplings, and bushings.



Specifications


Power Rating 25,2 kVA
Facility Power 400 - 480 - 575 V / 63 A / 50/60 Hz
Temperature Control Single / Dual
Weight 280 kg
Operating Area (WxH) 430 x 900 mm
Dimensions (LxBxH) 1080 x 500 x 1250 mm
Min. bore diameter (workpiece) ø 45 mm
Max. outer diameter (workpiece) ø 1500 mm
Max. weight (workpiece) 800 Kg
