Нисък корпус FLAT - PACK

Plastic casing



 Flat casing  FLAT - PACK

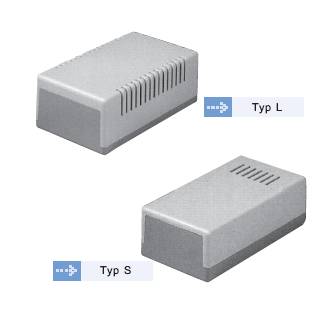

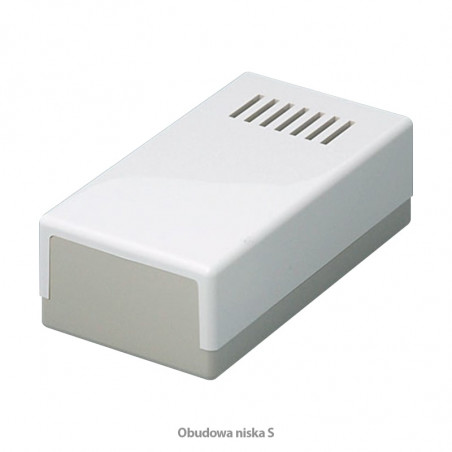

Flat casing  FLAT - PACK S with acoustic gap

Is great for small devices with acoustic signalling devices.











Dimensions mm







Producer number

Execution

length.

width.

height.

Catalogue number.





A 90 43 265

Flat casing L

110

189

70

A-O-X-014370





A 90 20 265

Flat casing S

  65

120

40

A-O-X-014363

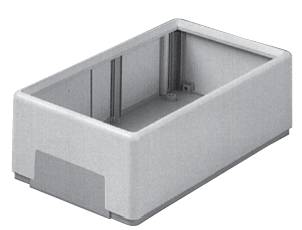

 Flat casing H with cut out for front panel assembly




Colours

Bottom part grey - RAL 7032.

Upper part  white grey - RAL 9002.











External dimensions mm

External dimensions  mm







Nr producenta

L

B

H

a

b

c

Catalogue number





Flat casing A



















A 95 20 165

120

  65

40

117

61

31,5

A-O-X-014441





A 95 30 165

150

  85

45

144

79

36,5

A-O-X-014442

























Aluminium front plates



















A 91 95 201

113

  58

1,0

 L = 120 mm

A-O-X-014415





A 91 95 301

142

71,5

1,5

 L  = 150 mm

A-O-X-014416





Front plates shall be order independently.

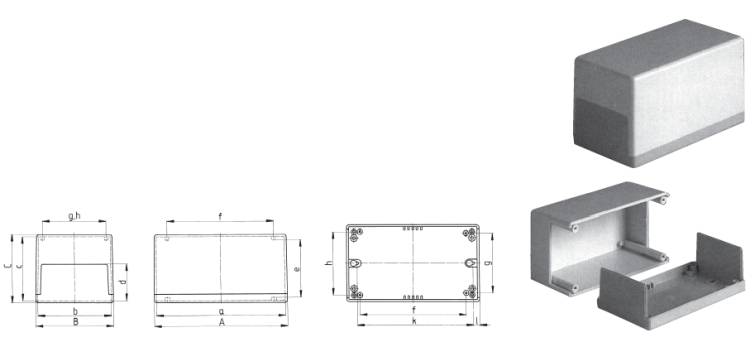

 Flat casing H z with high upper part






<td width="14%" no





Dimensions  mm







Producer number

A

B

C

a

b

c

Catalogue number.





A 90 11 065

100

50

40

94

44

34

A-O-X-014361





A 90 21 065

120

65

65

114

59

59

A-O-X-014364





A 90 31 065

150

80

80

144

74

74

A-O-X-014367





A 90 41 065

189

 110

97

183

104

91

По-малко
