Material
|
PA 6 - VO
|
Max operation temperature
|
3000 h 120 OC
|
500 h 155 OC
|
|
Min operation temperature
|
-40OC
|
Flammability class
|
UL94 V0
|
Non halogen
|
yes
|
Material declaration needed
|
no |
Chemical resistance:
|
Fuels, Mineral oils, grease, dis solvents.
|

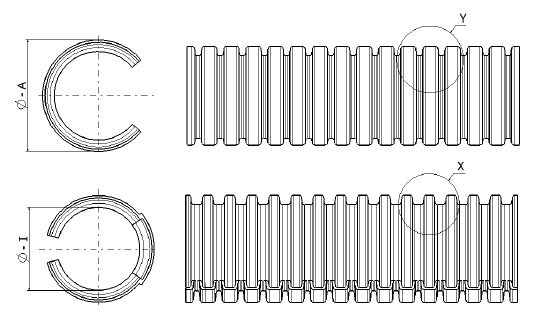

product number black colour | cut product number grey colour | Nominal diameter NW | Ø - I [mm] |
Ø - A [mm] |
---|---|---|---|---|
415-006-30 | request | 6 | 6,3 | 10 |
415-010-30 | request | 10 | 8,8 | 13,5 |
415-011-30 | request | 11 | 11 | 16,1 |
415-014-30 | request | 14 | 13,2 | 18,7 |
415-016-30 | request | 16 | 16 | 21,5 |
415-020-30 | request | 20 | 20,2 | 25,7 |
415-023-30 | request | 23 | 23,9 | 31,3 |
415-029-30 | request | 29 | 27,3 | 35,5 |
415-037-30 | request | 37 | 32,5 | 43,2 |
415-045-30 | request | 45 | 43,1 | 54,2 |
415-070-30 | 70 | 67 | 79,8 |
