Производител: CAMDENBOSS

Корпус за серия D контролни касети

The need to build buttons and switches requires the use of enclosures adapted to these solutions. It is a series with pre-drilled holes and a high degree of protection. It’s perfect for control equipment.


Specification


  • Material: ABS UL94-V0
  • Protection class: IP65
  • Rated temperature: -25°C to 70°C, -40°C to 80°C
  • Standard colours - box and lid: grey RAL 7035
  • Special to order - lid: yellow RAL 1103
  • 21mm diameter (PG13.5) knockouts moulded into the enclosure



Part no. Lid colour Lenght Width Height
CCS00GY00 Grey 70 mm 70 mm 51 mm
CCS03GY00 Grey 70 mm 70 mm 74 mm
CCS05GY00 Grey 105 mm 70 mm 51 mm
CCS06GY00 Grey 105 mm 70 mm 74 mm
CCS07GY00 Grey 140 mm 70 mm 51 mm
CCS08GY00 Grey 140 mm 70 mm 74 mm
CCS09GY00 Grey 185 mm 70 mm 51 mm
CCS10GY00 Grey 185 mm 70 mm 74 mm


* Larger sizes to order.

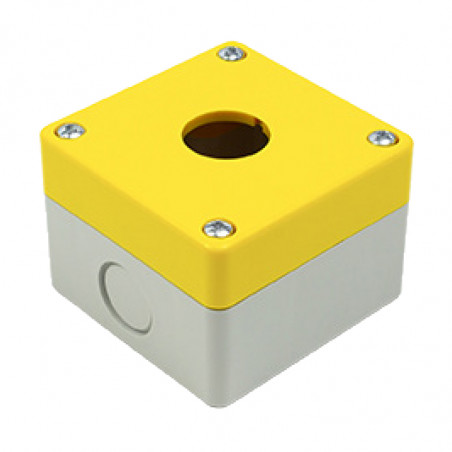

Single button


Part no. Colour Lenght Width Height
CCS00GY01 Grey 70 mm 70 mm 51 mm
CCS00YW01 Yellow 70 mm 70 mm 51 mm
CCS03GY01 Grey 70 mm 70 mm 74 mm
CCS03YW01 Yellow 70 mm 70 mm 74 mm




Two button


Part no. Colour Lenght Width Height
CCS05GY02 Grey 105 mm 70 mm 51 mm
CCS06GY02 Grey 105 mm 70 mm 74 mm




Three button


Part no. Colour Lenght Width Height
CCS07GY03 Grey 140 mm 70 mm 51 mm
CCS08GY03 Grey 140 mm 70 mm 74 mm




Four button


Part no. Colour Lenght Width Height
CCS09GY04 Grey 185 mm 70 mm 51 mm
CCS10GY04 Grey 185 mm 70 mm 74 mm




Five and six button


Part no. Colour Lenght Width Height
CCS11GY05 5 Grey 225 mm 70 mm 74 mm
CCS11GY06 6 Grey 225 mm 70 mm 74 mm



Accessories


Part no. Description
CCSP01 1
CCSP02 2
CCSP03 3
CCSP04 4
CCSP05 5


* For 6 button use 2x CCSP03
