Производител: CITEL

2+ 3 Контрол на скобата (C + D) MSB10 серия

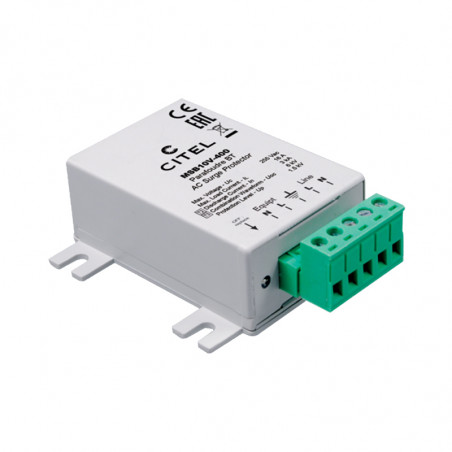

Hard-wired AC Surge Protectors seria MSB10

• Compact Type 2 and 3 surge protectors
• Wall mounting and hard wired connection
• Status indicators
• EN 61643-11, IEC 61643-11 and UL1449 4ed. compliance



Characteristics

Characteristics MSB10-400/DE MSB10V-400/DE
Rated voltage Un 230V AC 230V AC
Max. AC operating voltage Uc 277V AC 277V AC
Max. Load current (if connection serie) IL - 16A
Protection level CM/DM@In (8/20µs) and @ 6kV (1.2/50µs) Up 1,5kV 1,5kV
Max. discharge current -max. withstand @ 8/20 µs by pole Imax 10kA
Nominal discharge current In 5kA
Withstand on Combination waveform - Class III test Uoc 10kV
Mechnical characteristics
Failsafe behavior Disconnection and AC line cut-off disconnect from the network and the circuit for wiring V
Voltage/operating indicator Green Led ON
Mounting Wall or plate screw terminal
Protection rating IP65 IP20

Control standards
EN 61643-11            Europe surge arrester type 2 + 3
Article number 56120120 56110120

Versions for 120V - on request

Dimensions and diagram
