Производител: CITEL

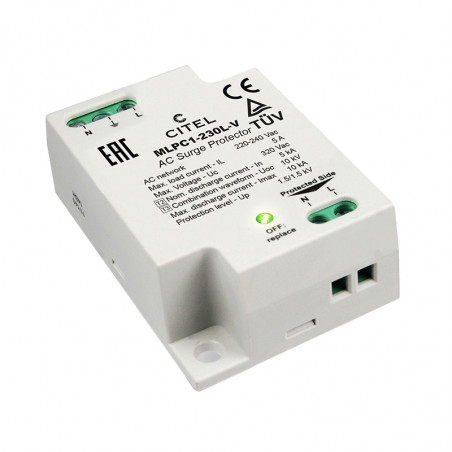

2 + 3 Arrages (C + D) за LED осветление MLPC1-230L-R, MLPC1-230L-V

Surge Protectors for LED lighting system MLPC1-230L-R, MLPC1-230L-V

• Type 2 (or 3) surge protectors for Led lighting
• Very compact
• Plate mounting
• Screw terminal or spring terminal connection
• Status indicator
• End of life AC Disconnection
• IEC 61643-11 and EN 61643-11 compliance



Technical data

Description

MLPC-1-230L-R

MLPC-1-230L-R/50

MLPC-1-230L-V

MLPC-1-230L-V/50
Network 230-277V AC
Max. Load current IL 5A
Max. AC operating voltage Uc 320V AC
Nominal discharge current
- 15 x 8/20 µs impulses		 In 5kA
Max. discharge current
-max. withstand @ 8/20 µs by pole		 Imax 10kA
Withstand on Combination waveform - Class III test Uoc 10kV / 5kA
Withstand on overvoltages IEEE C62.41.1   10kV / 10kA
Protection level CM/DM
@In (8/20µs) and @ 6kV (1.2/50µs		 Up 1,5kV
Admissible short-circuit current ISCCR 10000A



Mechnical characteristics
Termiczne urządzenie odłączające wewnątrz
Dimensions see diagram
Connection to Network Screw or Spring contact terminal - 2,5
mm² max		 2 screw terminals opposite side in/out
- wire 2.5 mm² max.
Voltage/operating indicator Green Led ON
Disconnection indicator Disconnection and AC line cut-off
Failsafe behavior Led green OFF and AC network cut-off
Remote signaling of disconnection none
Zakres temperatur pracy -40 do +85°C
Mounting on plate
Protection rating IP20



Model/Part number
IEC 61643-11            International Low Voltage SPD (class II [&] III test)
EN 61643-11            Europe Low Voltage SPD (class II [&] III test)
IEC 61643-21            International -



Dimensions and diagrams

Ograniczniki przepięć typu 2+3 (C+D) dla oświetlenia LED MLPC1-230L-R, MLPC1-230L-V wymiary

Ograniczniki przepięć typu 2+3 (C+D) dla oświetlenia LED MLPC1-230L-R, MLPC1-230L-V schemat GDT: Gas Tube
V: MOV
Ft: Thermal fuse
to: Thermal system disconnection
