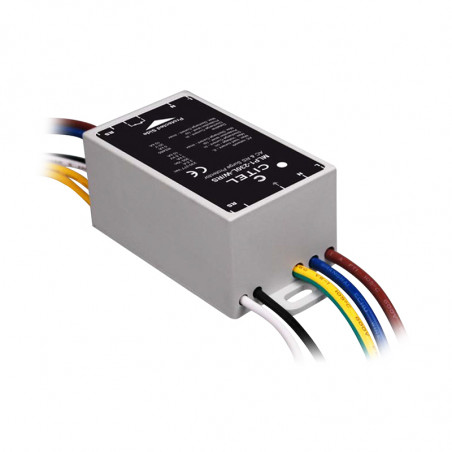

2 + 3 пренапрежения (C + d) серия MLPX-XXX за 1-фазни инсталации
  • 2 + 3 пренапрежения (C + d) серия MLPX-XXX за 1-фазни инсталации

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: CITEL

2 + 3 пренапрежения (C + d) серия MLPX-XXX за 1-фазни инсталации

LED street lighting Surge Protector MLP range

• Type 2 (or 3) surge protector
• Class I or Class II configurations
• Comprehensive range for all configurations
• Very compact dimensions
• IP65 version
• Combined AC/Dataline version
• Wire or Screw connection
• Max. discharge current 10 kA
• Remote signaling (option)
• IEC 61643-11 and EN 61643-11 compliance



Ograniczniki przepięć typu 2+3 (C+D) Seria MLPx-xxx dla instalacji 1-fazowej

Characteristics

Description

MLPx-120-x

MLPx-230-x

MLPx-x-x/RS

MLPx-x-x/DL
AC voltage specifications Dataline specifications
Protecion model(s)   110 - 120V AC single phase 230 - 277V AC single phase RS485 lub 0-10V DC DALI
Max. Load current Il 2,5A separacja obwodu prądowego / 16A separacja równoległa 300 mA
Max. AC operating voltage Uc 180V AC 305V AC 15V DC 28V DC
Residual current
- Leakage current at Uc		 IPE brak
Nominal discharge current - 15 x 8/20 µs impulses In 5kA 5kA (M 100A(M LP1-xx]
LP2-xx]
Max. discharge current -max. withstand @ 8/20 µs by pole 1 max 10kA 10kA(M 200A (M LP1 -xx] LP2-xx]
Withstand on Combination waveform- Class III test Uoc 10kV / 5kA wg IEC test klasy III 10kV / 10kA wg IEEE C62.41.1
Protection level CM/DM@In (8/20µs) and @ 6kV (1.2/50µs) Up 1kV / 1,5kV 1,5kV / 1,5kV 30V 40V
Admissible short-circuit current Isccr 10000A

Connection to Network Screw or spring terminal - 1.5 mm² max Screw or spring terminal - 1 mm² max
Voltage/operating indicator Green Led ON -
Failsafe behavior Led green OFF and AC network cut-off Short-circuit
Disconnection indicator Led green OFF and AC network cut-off or remote signal (option) Transmission cut-offe
Remote signaling of disconnection Option none
Standards compliance IEC 61643-11 / EN 61643-11 / NF EN 61643-11 / UL1449 ed.4 IEC 61643-21 / EN 61643-21 / UL497A
Description

1 MLP1-230L-W

MLP2-230L-P

MLP2-230-P

MLP2-230S-P/RS
Protecion model(s)     230 - 277V AC
Max. Load current IL 2,5A
Max. AC operating voltage UC   305V AC
Residual current - Leakage current at Uc IPE none   none
Temporary Over Voltage (TOV) Charasteristics - 5 sec. UT   335V / 5 s
Temporary Over Voltage (TOV) Charasteristics - 120 mn     440 V / 120 min
Nominal discharge current - 15 x 8/20 µs impulses In   5kA
Max. discharge current -max. withstand @ 8/20 µs by pole I max   10kA
Withstand on Combination waveform - Class III test Uoc   10kV / 5kA wg IEC test klasy III 10kV / 10kA wg IEEE C62.41.1
Protection level CM/DM@In (8/20µs) and @ 6kV (1.2/50µs) Up   1,5kV
Admissible short-circuit current ISCCR   10000A

Surge signal path
Network brak RS485 lub 0-10V DC
Max. DC operating voltage - 12V DC
Max. Load current - 300mA
Znamionowy prąd wyładowczy-100A

Mechnical characteristics
Conductor cross-section (AC) cable 1,5 mm2 max wire 1,5 mm² max
Conductor cross-section (Daten) cable 1 mm2 max wire 1 mm² max
Disconnection indicator Transmission cut-off Transmission cut-off
Operating temperature -40 do + 85°C
Protection rating IP65 IP20
Protection class class I class II
Normy kontrolne
IEC 61643-1 1 (AC SPD] ogranicznik przepięć typu 2+3
IEC 61643-21 (komunikacyjny ogranicznik] - C2
Product Part number Product Part number Product Part number Product Part number Product Part number Product Part number
MLP1-230L-P 721211 MLP1-230L-P/DL 721231 MLP1-230L-P/RS 721251 MLP1-230L-W 711211 MLP1-230L-W/DL 711231 MLP1-230L-W/RS 711251
MLP1-230S-P 721201 MLP1-230S-P/DL 721221 MLP1-230S-P/RS 721241 MLP1-230S-W 711201 MLP1-230S-W/DL 711221 MLP1-230S-W/RS 711241
MLP1-230-W 711261 MLP2-230L-P 721212 MLP2-230L-P/DL 721232 MLP2-230L-P/RS 721252 MLP2-230LS-P 721272 MLP2-230LS-W 711272
MLP2-230L-W 711212 MLP2-230L-W/DL 711232 MLP2-230L-W/RS 711252 MLP2-230-P 721262 MLP2-230S-P 721202 MLP2-230S-P/DL 721222
MLP2-230S-P/RS 721242 MLP2-230S-W 711202 MLP2-230S-W/DL 711222 MLP2-230S-W/RS 711242 MLP2-230-W 711262

Dimensions and diagrams

Ograniczniki przepięć typu 2+3 (C+D) Seria MLPx-xxx dla instalacji 1-fazowej wymiary

Ograniczniki przepięć typu 2+3 (C+D) Seria MLPx-xxx dla instalacji 1-fazowej schemat

GDT: Gas tube
G3: 3-pole gas tube
V: MOV
Ft: Thermal fuse
t°: Termiczne urządzenie odłączające
REMOTE: Dry conact for remote signaling
