3 (d) MSB6 и MSB10 пренапрежение за LED защита в сградите
  • 3 (d) MSB6 и MSB10 пренапрежение за LED защита в сградите

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: CITEL

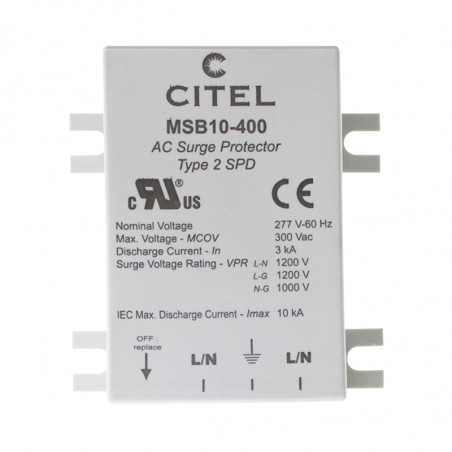

3 (d) MSB6 и MSB10 пренапрежение за LED защита в сградите

Hard-wired AC Surge Protectors MSB6 i MSB10

• Compact Type 2 and 3 surge protectors
• Wall mounting and hard wired connection
• UL1669 3ed. and IP66 (MSB10-600)
• Status indicators
• EN 61663-11, IEC 61663-11 and ULU696ed. compliance


Description

MSB6

MSB10

MSB6-400

MSB6-400/LD

MSB6-24/LD

MSB10C-400
Rated voltage Un 230V AC 24V AC-24V DC 230V AC
Max. Ac operating voltage Uc 255V AC 30V AC-38V DC 255V AC
Max. Load current
(if connection serie]		 IL - - 16A
Protection level CM/DM Idin Up 1,5kV 0,18kV 1,5kV
Max. discharge current
(1 x 8/20 µs)		 Imax 6kA 2kA 10kA
Nominal discharge current In 3kA 0,5kA 3kA
Withstand on Combination waveforum
(1,2/50 µs - 8/20 µs)		 Uoc 6kV 1kV 6kV

Mechnical characteristics
Failsafe behavior Disconnection Disconnetion and AC line cut-off
Disconnection indicatro buzzer ON Green LED ON
Connetion to Network wires screw terminal
Mountng Wall or plate AC outlet or screw terminal
Protection rating IP20
Control standards
EN 61643-11 Europa arrester type 3
Article number 561302 561312 561313 561301

Dimensions and diagrams

Ograniczniki przepięć typu 3 (D) MSB6 i MSB10 do zabezpieczania LED w budynkach wymiary

Ograniczniki przepięć typu 3 (D) MSB6 i MSB10 do zabezpieczania LED w budynkach schemat

GDT: Gas Discharge Tube
V: Vanstro
Ft: Thermal fuse
t°: Thermal system disconnetion
