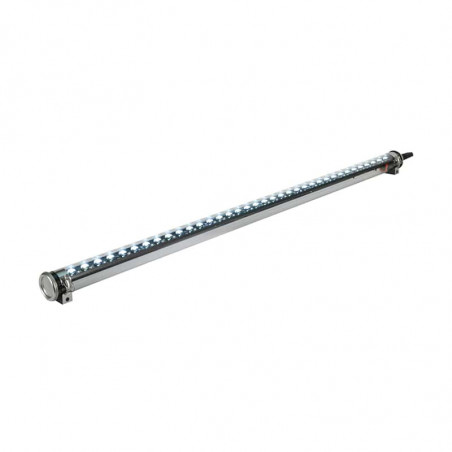

Целзий 70 SA приспособление 1613 mm
  • Целзий 70 SA приспособление 1613 mm

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Sammode

Целзий 70 SA приспособление 1613 mm

CELSIUS 70 SA 1613 mm

Basic features
  • operation down to -60 oC
  • saving energy
  • increased service intervals
  • 5-year warranty
Optimum temp. -60 °C to -35°C
Technology LED
Light output 2224 lm
Power supply 24V DC


Key features
Plug and Play installation with disconnectable plug
Designed for frequent on/off cycles
Infrequent maintenance
Resistant to detergents
Durable and maintainable luminaires

Materials
Diffuser
Special food processing housing in polycarbonate protected with a layer of co-extruded methacrylate
End caps, fixing straps, etc. – 304L stanless steel
Gasket – EPDM

Standards
Sealing – IP 68, IP 69K
Shock resistance– IK 10
Fire resistance – 650oC

Technical features
Light sources
LED modules for extreme cold developed by Sammode
50 000H L80/B50
Replaceable modules
Optics
Special satinised LED diffuser
Thermal management
Aluminium heat sink
Power supply
24V – 26V DC
Operating temperature
-60oC to +25oC
Connection
Disconnectable plug, cable Ø 8-10 mm (2 x 1.5 mm²)
Fixing
2 spring-loaded stainless steel fixing straps
Method of construction
Single-piece housing with reinforced sealing through radial expansion of the gasket
Closure by tightening the nut under the cable gland


Principal part numbers
Light output * (lm) Designation Part No. Cons (W) Optics T (°K) L (mm)
2224 CEL70 24DC 6M6L10 POME PS2 SA 6430 0060 55 4100 1613
