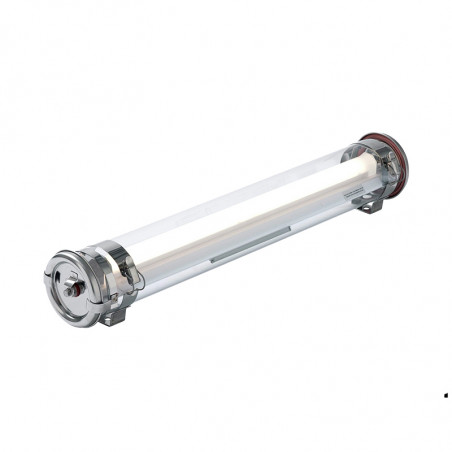

Хъттън 100.

LED technology
Low in maintenance Instantaneous full light output on ignition over the entire temperature range of use Designed for repeated switching on and off

Tubular
Increased mechanical resistance. Easy to clean. Limited dirt accumulation. Orientation 360o.

Impervious
(IP68/IP69K) Absolute imperviousness No internal dust accumulation Maximum light output Adapted for pressure cleaning

Robust
Mechanical assembly insensitive to external mechanical and/or chemical aggressio

Basic parameters
Electrical class: I
Fire resistance: Coex. polycarbonate/PMMA (650^oC), Borosilicate glass (non-flammable)
Protecion: IP 68/69K
Shock resistance: IK10 (polycarbonate), IK07 (Borosilicat glass).
Operationg temperature: -20^oC do +40^oC
II 3G Ex nA IIC T4 Gc, II 2D Ex tb IIIC T80^oC Db

Dimensions
Korpus o średnicy 100 mm dostępny w wersji z VERSIONS WITH COEXTRUDED POLYCARBONATE / PMMA HOUSINGu or szkła borokrzemowego.
Zatyczki na końcach ze stali nierdzewnej 304L (dostępna także 316L).
Uszczelki: odlewane EPDM.
Dławnica kablowa na Cable.
Możliwość dostawy wersji przelotowej (2 dławnice) or końcowej (1 dławnica + zaślepka).

Power	Fliux (Im)	Designation	Code	Optics	Colour temperatue [K]	L [mm]	Ciężar [kg]
VERSIONS WITH BOROSILICATE GLASS HOUSING
		Equivalent to 1x36W T8
24W	2775	HUT100 13H830 PY 113	1983 0050		3000	1007	4,9
24W	2775	HUT100 13H840 PY 113	1983 0060		4000	1007	4,9
		Equivalent to 1x58W T8
40W	4625	HUT100 15H830 PY 113	1983 0070		3000	1607	7,6
40W	4625	HUT100 15H840 PY 113	1983 0080		4000	1607	7,6
VERSIONS WITH COEXTRUDED POLYCARBONATE / PMMA HOUSING
		Equivalent to 1x36W T8
24W	2775	HUT100 13H830 POME 113	1983 0090		3000	1007	3,0
24W	2775	HUT100 13H840 POME 113	1983 0100		4000	1007	3,0
		Equivalent au 1x58W T8
40W	4625	HUT100 15H830 POME 113	19830110		3000	1607	4,3
40W	4625	HUT100 15H840 POME 113	1983 0120		4000	1607	4,3
