Снимките са само с информационна цел. Вижте спецификацията на продукта
please use latin characters

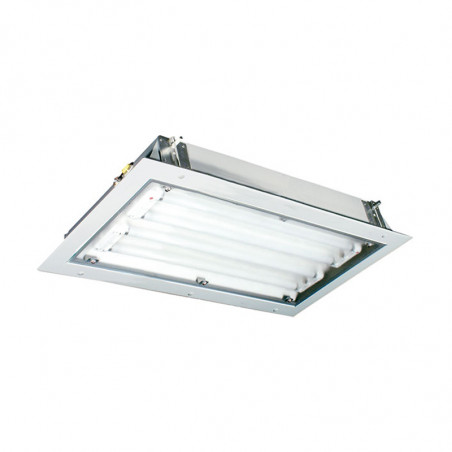

Light fittings eLLB 20
eLLB 20... 18-58 W
Oprawy świetlówkowe z serii nLLK 08 spełniają zasadnicze wymagania Dyrektywy ATEX (94/9/ WE) i są dopuszczone do pracy w strefie 2 oraz 21 i 22 zagrożenia wybuchem. Wyposażone są w stateczniki elektroniczne (EVG), które umożliwiają bezpieczną i oszczędną pracę dwupinowych świetlówek G13, które pod koniec okresu swojej żywotności są monitorowane i bezpiecznie wyłączane. oprawy dostępne są w dwóch wariantach: o mocy 18 lub 36 W. Wyposażone są w system baterii – dla trybu z konserwacją lub bez konserwacji. Oprawy te charakteryzują się 1,5- lub 3-godzinnym czasem pracy w trybie awaryjnym oraz zieloną diodą LED sygnalizującą ładowanie baterii. Standardowe jednostronne okablowanie przelotowe oraz przestronny przedział zaciskowy, zapewnia szybką i wygodną instalację. Dzięki dwustronnej blokadzie z 10 lub 20 zatrzaskami, przy montażu oprawy nie trzeba zwracać uwagi na to, która strona jest właściwa. Przyjazny w eksploatacji system baterii zamontowany jest za klapą reflektora.
eLLB 20018/18 | eLLB 20036/36 | eLLB 20058/58 eLLB 20418 | eLLB 20436
eLLB 20436 | eLLB 20418 | eLLB 20058/58 | eLLB 20036/36 | eLLB 20018/18 |
Marking accd. to 94/9/EC | Ex II 2G Ex de mb ib IIC T4 Gb Ex II 2D Ex tb IIIC T80 °C Db IP66 |
---|---|
Certyfikat badania typu WE | BVS 09 ATEX E 044 X |
IECEx Certificate of Conformity | IECEx BKI 08.0017 |
Marking accd. to IECEx | Ex edmb [ib] IIC T4 Gb Ex t IIIC IP66 T80 °C Db |
Permissible ambient temperature | -25 °C do +50 °C |
Frequency | 50-60 Hz |
Power factor cos φ | ≥ 0,95 |
Circuit | EVG lub EVG/CG-S |
Connecting terminals | L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal, through-wiring twin-ende |
Protection class | I |
Lamp cap | G13 wg IEC 60081 |
Degree of protection accd. to EN 60529 | IP66 |
Cable glands / gland plates / enclosure drilling | Ex-e cable glands Ex-e M25 x 1,5 (plastic)) na kable o średnicy 0 8 - 17 mm, |
Option: | M20 x 1,5 metal thread |
Enclosure material | painted steel sheet, white optional polished stainless steel |
Enclosure colour | white RAL 9010 |
Protective cover / protective bowl | single-safety glass pane of 6 mm thick |
Permissible ceiling tickness for fixing accessories | min. 25 mm do max. 90 mm |
1 eLLB 20018/18 | 1 eLLB 20418 | |
---|---|---|
Rated voltage | 110-254 V AC / 110-250 V DC | 110-254 V AC / 110-250 V DC |
Rated voltage CG-S | 220-254 V AC / 195-250 V DC | 220-254 V AC / 195-250 V DC |
Rated current | 0,18 A / 0,19 A (CG-S wariant) | 0,36 A / 0,37 A (CG-S wariant) |
Lamp/illuminant | 2 x T26 / 18 W (T8) | 4 x T26 / 18 W (T8) |
Rated luminous flux1) | 2700 lm | 5400lm |
Dimensions (L x W x H) | 862 x 340 x 120 mm | 862 x 490 x 120 mm |
Weight | ok. 15 kg / ok. 15,5 kg (CG-S wariant) | ok. 25 kg / ok. 25,5 kg (CG-S wariant) |
eLLB 20036/36 | eLLB 20436 | |
---|---|---|
Rated voltage | 110-254 V AC / 110-250 V DC | 110-254 V AC / 110-250 V DC |
Rated voltage CG-S | 220-254 V AC / 195-250 V DC | 220-254 V AC / 195-250 V DC |
Rated current | 0,34 A / 0,35 A (CG-S wariant) | 0,68 A / 0,69 A (CG-S wariant) |
Lamp/illuminant | 2 x T26 / 36 W (T8) | 4 x T26 / 36 W (T8) |
Rated luminous flux1) | 6700lm | 13400lm |
Dimensions (L x W x H) | 1460 x 340 x 120 mm | 1460 x 490 x 120 mm |
Weight | ok. 22 kg / ok. 22,5 kg (CG-S wariant) | ok. 34 kg / ok. 34,5 kg (CG-S wariant) |
eLLB 20058/58 | ||
---|---|---|
Rated voltage | 220-254 V AC / 195-250 V DC | |
Rated voltage CG-S | 220-254 V AC / 195-250 V DC | |
Rated current | 0,53 A / 0,54 A (CG-S wariant) | |
Lamp/illuminant | 2 x T26 / 58 W (T8) | |
Rated luminous flux | 10400lm | |
Dimensions (L x W x H) | 1760 x 340 x 120 mm | |
Weight | około 26 kg / około 26,5 kg (CG-S wariant) |
1)Depending on the housing
eLLB 20018/18 | eLLB 20036/36 | eLLB 20058/58 eLLB 20418 | eLLB 20436
eLLB 20436 | eLLB 20418 | eLLB 20058/58 | eLLB 20036/36 | eLLB 20018/18 |
Details of the order
Product Groups | Product Subgroup | Description | Part No. | |
---|---|---|---|---|
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2M Stainless Steel 316 | 12190218111 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2, Sheet Metal, painted | 12190218001 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2 Stainless Steel 316 | 12190218011 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2M Sheet Metal, painted | 12190218101 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2M Stainless Steel 316 | 12190236111 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2, Sheet Metal, painted | 12190236001 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2 Stainless Steel 316 | 12190236011 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2M Sheet Metal, painted | 12190236101 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2M Stainless Steel 316 | 12190258111 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2 Stainless Steel 316 | 12190258011 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2, Sheet Metal, painted | 12190258001 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2M Sheet Metal, painted | 12190258101 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2M Stainless Steel 316 | 12190418111 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2M Sheet Metal, painted | 12190418101 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2, Stainless Steel 316 | 12190418011 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2, Sheet Metal, painted | 12190418001 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2M Stainless Steel 316 | 12190436111 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2M Sheet Metal, painted | 12190436101 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2, Stainless Steel 316 | 12190436011 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2, Sheet Metal, painted | 12190436001 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2M Stainless Steel 316 | 12190218723 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2, Sheet Metal, painted | 12190218703 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2M Stainless Steel 316 | 12190218733 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2M Sheet Metal, painted | 12190218713 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2M Stainless Steel 316 | 12190236723 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2, Sheet Metal, painted | 12190236703 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2 Stainless Steel 316 | 12190236733 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2M Sheet Metal, painted | 12190236713 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2M Stainless Steel 316 | 12190258723 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2, Sheet Metal, painted | 12190258703 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2 Stainless Steel 316 | 12190258733 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2M Sheet Metal, painted | 12190258713 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2M Stainless Steel 316 | 12190418723 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2M Sheet Metal, painted | 12190418713 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2, Stainless Steel 316 | 12190418733 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2, Sheet Metal, painted | 12190418703 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2M, Stainless Steel 316 | 12190436723 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2M, Sheet Metal, painted | 12190436713 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2, Stainless Steel 316 | 12190436733 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2, Sheet Metal, painted | 12190436703 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2, Stainless Steel 316 | 12190218012 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2, Sheet Metal, painted | 12190218002 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2M, Stainless Steel 316 | 12190218112 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2M, Sheet Metal, painted | 12190218102 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2, Stainless Steel 316 | 12190236012 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2, Sheet Metal, painted | 12190236002 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2M, Stainless Steel 316 | 12190236112 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2M, Sheet Metal, painted | 12190236102 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2, Stainless Steel 316 | 12190418012 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2, Sheet Metal, painted | 12190418002 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2M, Stainless Steel 316 | 12190418112 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2M, Sheet Metal, painted | 12190418102 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2, Stainless Steel 316 | 12190436012 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2, Sheet Metal, painted | 12190436002 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2M, Stainless Steel 316 | 12190436112 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2M, Sheet Metal, painted | 12190436102 | |
eLLB 20018/18 | eLLB 20036/36 | eLLB 20058/58 eLLB 20418 | eLLB 20436
eLLB 20436 | eLLB 20418 | eLLB 20058/58 | eLLB 20036/36 | eLLB 20018/18 |
Accessories
Fixing materials eLLB 20... | |||
---|---|---|---|
Type/code | Corrosion protection | Number of binding | no product |
eyebolt A2 | plating | 2 | 22 480 002 000 |
Hexagon screw S4 | stainless steel | 2 | 22 480 054 000 |
Bracket for ceiling mount D92 with the supplied screws and washers | stainless steel | 2 | 22 480 092 000 |
Fixing materials eLLB 20... | |||||
---|---|---|---|---|---|
Type/code | Corrosion protection | for pipes DIN | Outer Ø D (mm) | Qty per light fitting | Order No |
Pipe clamp | |||||
R12 | hot galvanizde | 1 1/4"v | 38-42 | 2 | 22 480 462 000 |
R14 | CrNi | 1 1/4" | 38-42 | 2 | 22 480 464 000 |
R22 | hot galvanizde | 1 1/2" | 47-51 | 2 | 22 480 472 000 |
R24 | CrNi | 1 1/2" | 47-51 | 2 | 22 480 474 000 |
R32 | hot galvanizde | 2" | 56-60 | 2 | 22 480 482 000 |
R34 | CrNi | 2" | 56-60 | 2 | 22 480 484 000 |
Luminaire wall suspension 30° z incl. screws and washer | not dip galvanized | 2 | 22 480 000 122 |
Dimensions
Polar curve
Polar curve eLLB 20018/18 / eLLB 20036/36 / eLLB 20058/58 |
Polar curve eLLB 20418 / eLLB 20436 |
Изпратете запитване
Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?
Свържете се с нас
Трябва да сте влезли
Light fittings eLLB 20
eLLB 20... 18-58 W
Oprawy świetlówkowe z serii nLLK 08 spełniają zasadnicze wymagania Dyrektywy ATEX (94/9/ WE) i są dopuszczone do pracy w strefie 2 oraz 21 i 22 zagrożenia wybuchem. Wyposażone są w stateczniki elektroniczne (EVG), które umożliwiają bezpieczną i oszczędną pracę dwupinowych świetlówek G13, które pod koniec okresu swojej żywotności są monitorowane i bezpiecznie wyłączane. oprawy dostępne są w dwóch wariantach: o mocy 18 lub 36 W. Wyposażone są w system baterii – dla trybu z konserwacją lub bez konserwacji. Oprawy te charakteryzują się 1,5- lub 3-godzinnym czasem pracy w trybie awaryjnym oraz zieloną diodą LED sygnalizującą ładowanie baterii. Standardowe jednostronne okablowanie przelotowe oraz przestronny przedział zaciskowy, zapewnia szybką i wygodną instalację. Dzięki dwustronnej blokadzie z 10 lub 20 zatrzaskami, przy montażu oprawy nie trzeba zwracać uwagi na to, która strona jest właściwa. Przyjazny w eksploatacji system baterii zamontowany jest za klapą reflektora.
eLLB 20018/18 | eLLB 20036/36 | eLLB 20058/58 eLLB 20418 | eLLB 20436
eLLB 20436 | eLLB 20418 | eLLB 20058/58 | eLLB 20036/36 | eLLB 20018/18 |
Marking accd. to 94/9/EC | Ex II 2G Ex de mb ib IIC T4 Gb Ex II 2D Ex tb IIIC T80 °C Db IP66 |
---|---|
Certyfikat badania typu WE | BVS 09 ATEX E 044 X |
IECEx Certificate of Conformity | IECEx BKI 08.0017 |
Marking accd. to IECEx | Ex edmb [ib] IIC T4 Gb Ex t IIIC IP66 T80 °C Db |
Permissible ambient temperature | -25 °C do +50 °C |
Frequency | 50-60 Hz |
Power factor cos φ | ≥ 0,95 |
Circuit | EVG lub EVG/CG-S |
Connecting terminals | L1, L2, L3, L, N, PE; max. 2 x 6 mm2 per terminal, through-wiring twin-ende |
Protection class | I |
Lamp cap | G13 wg IEC 60081 |
Degree of protection accd. to EN 60529 | IP66 |
Cable glands / gland plates / enclosure drilling | Ex-e cable glands Ex-e M25 x 1,5 (plastic)) na kable o średnicy 0 8 - 17 mm, |
Option: | M20 x 1,5 metal thread |
Enclosure material | painted steel sheet, white optional polished stainless steel |
Enclosure colour | white RAL 9010 |
Protective cover / protective bowl | single-safety glass pane of 6 mm thick |
Permissible ceiling tickness for fixing accessories | min. 25 mm do max. 90 mm |
1 eLLB 20018/18 | 1 eLLB 20418 | |
---|---|---|
Rated voltage | 110-254 V AC / 110-250 V DC | 110-254 V AC / 110-250 V DC |
Rated voltage CG-S | 220-254 V AC / 195-250 V DC | 220-254 V AC / 195-250 V DC |
Rated current | 0,18 A / 0,19 A (CG-S wariant) | 0,36 A / 0,37 A (CG-S wariant) |
Lamp/illuminant | 2 x T26 / 18 W (T8) | 4 x T26 / 18 W (T8) |
Rated luminous flux1) | 2700 lm | 5400lm |
Dimensions (L x W x H) | 862 x 340 x 120 mm | 862 x 490 x 120 mm |
Weight | ok. 15 kg / ok. 15,5 kg (CG-S wariant) | ok. 25 kg / ok. 25,5 kg (CG-S wariant) |
eLLB 20036/36 | eLLB 20436 | |
---|---|---|
Rated voltage | 110-254 V AC / 110-250 V DC | 110-254 V AC / 110-250 V DC |
Rated voltage CG-S | 220-254 V AC / 195-250 V DC | 220-254 V AC / 195-250 V DC |
Rated current | 0,34 A / 0,35 A (CG-S wariant) | 0,68 A / 0,69 A (CG-S wariant) |
Lamp/illuminant | 2 x T26 / 36 W (T8) | 4 x T26 / 36 W (T8) |
Rated luminous flux1) | 6700lm | 13400lm |
Dimensions (L x W x H) | 1460 x 340 x 120 mm | 1460 x 490 x 120 mm |
Weight | ok. 22 kg / ok. 22,5 kg (CG-S wariant) | ok. 34 kg / ok. 34,5 kg (CG-S wariant) |
eLLB 20058/58 | ||
---|---|---|
Rated voltage | 220-254 V AC / 195-250 V DC | |
Rated voltage CG-S | 220-254 V AC / 195-250 V DC | |
Rated current | 0,53 A / 0,54 A (CG-S wariant) | |
Lamp/illuminant | 2 x T26 / 58 W (T8) | |
Rated luminous flux | 10400lm | |
Dimensions (L x W x H) | 1760 x 340 x 120 mm | |
Weight | około 26 kg / około 26,5 kg (CG-S wariant) |
1)Depending on the housing
eLLB 20018/18 | eLLB 20036/36 | eLLB 20058/58 eLLB 20418 | eLLB 20436
eLLB 20436 | eLLB 20418 | eLLB 20058/58 | eLLB 20036/36 | eLLB 20018/18 |
Details of the order
Product Groups | Product Subgroup | Description | Part No. | |
---|---|---|---|---|
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2M Stainless Steel 316 | 12190218111 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2, Sheet Metal, painted | 12190218001 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2 Stainless Steel 316 | 12190218011 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 2/6-2M Sheet Metal, painted | 12190218101 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2M Stainless Steel 316 | 12190236111 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2, Sheet Metal, painted | 12190236001 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2 Stainless Steel 316 | 12190236011 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 2/6-2M Sheet Metal, painted | 12190236101 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2M Stainless Steel 316 | 12190258111 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2 Stainless Steel 316 | 12190258011 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2, Sheet Metal, painted | 12190258001 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 2/6-2M Sheet Metal, painted | 12190258101 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2M Stainless Steel 316 | 12190418111 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2M Sheet Metal, painted | 12190418101 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2, Stainless Steel 316 | 12190418011 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) 2/6-2, Sheet Metal, painted | 12190418001 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2M Stainless Steel 316 | 12190436111 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2M Sheet Metal, painted | 12190436101 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2, Stainless Steel 316 | 12190436011 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) 2/6-2, Sheet Metal, painted | 12190436001 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2M Stainless Steel 316 | 12190218723 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2, Sheet Metal, painted | 12190218703 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2M Stainless Steel 316 | 12190218733 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 018/18 V-CG-S 2/6-2M Sheet Metal, painted | 12190218713 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2M Stainless Steel 316 | 12190236723 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2, Sheet Metal, painted | 12190236703 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2 Stainless Steel 316 | 12190236733 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 036/36 V-CG-S 2/6-2M Sheet Metal, painted | 12190236713 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2M Stainless Steel 316 | 12190258723 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2, Sheet Metal, painted | 12190258703 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2 Stainless Steel 316 | 12190258733 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20... | Ex-recessed ceiling light fitting eLLB 20 058/58 V-CG-S 2/6-2M Sheet Metal, painted | 12190258713 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2M Stainless Steel 316 | 12190418723 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2M Sheet Metal, painted | 12190418713 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2, Stainless Steel 316 | 12190418733 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 18 (4 x 18 W) V-CG-S 2/6-2, Sheet Metal, painted | 12190418703 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2M, Stainless Steel 316 | 12190436723 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2M, Sheet Metal, painted | 12190436713 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2, Stainless Steel 316 | 12190436733 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling light fitting eLLB 204 36 (4 x 36 W) V-CG-S 2/6-2, Sheet Metal, painted | 12190436703 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2, Stainless Steel 316 | 12190218012 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2, Sheet Metal, painted | 12190218002 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2M, Stainless Steel 316 | 12190218112 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 18/18 NIB 2/6-2M, Sheet Metal, painted | 12190218102 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2, Stainless Steel 316 | 12190236012 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2, Sheet Metal, painted | 12190236002 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2M, Stainless Steel 316 | 12190236112 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 20 36/36 NIB 2/6-2M, Sheet Metal, painted | 12190236102 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2, Stainless Steel 316 | 12190418012 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2, Sheet Metal, painted | 12190418002 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2M, Stainless Steel 316 | 12190418112 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 18 (4 x 18 W) NIB 2/6-2M, Sheet Metal, painted | 12190418102 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2, Stainless Steel 316 | 12190436012 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2, Sheet Metal, painted | 12190436002 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2M, Stainless Steel 316 | 12190436112 | |
Ex-recessed ceiling light fittings | Ex-Recessed Ceiling Light Fitting eLLB 20 NIB and V-CG-S | Ex-recessed ceiling emergency light fitting eLLB 204 36 (4 x 36 W) NIB 2/6-2M, Sheet Metal, painted | 12190436102 | |
eLLB 20018/18 | eLLB 20036/36 | eLLB 20058/58 eLLB 20418 | eLLB 20436
eLLB 20436 | eLLB 20418 | eLLB 20058/58 | eLLB 20036/36 | eLLB 20018/18 |
Accessories
Fixing materials eLLB 20... | |||
---|---|---|---|
Type/code | Corrosion protection | Number of binding | no product |
eyebolt A2 | plating | 2 | 22 480 002 000 |
Hexagon screw S4 | stainless steel | 2 | 22 480 054 000 |
Bracket for ceiling mount D92 with the supplied screws and washers | stainless steel | 2 | 22 480 092 000 |
Fixing materials eLLB 20... | |||||
---|---|---|---|---|---|
Type/code | Corrosion protection | for pipes DIN | Outer Ø D (mm) | Qty per light fitting | Order No |
Pipe clamp | |||||
R12 | hot galvanizde | 1 1/4"v | 38-42 | 2 | 22 480 462 000 |
R14 | CrNi | 1 1/4" | 38-42 | 2 | 22 480 464 000 |
R22 | hot galvanizde | 1 1/2" | 47-51 | 2 | 22 480 472 000 |
R24 | CrNi | 1 1/2" | 47-51 | 2 | 22 480 474 000 |
R32 | hot galvanizde | 2" | 56-60 | 2 | 22 480 482 000 |
R34 | CrNi | 2" | 56-60 | 2 | 22 480 484 000 |
Luminaire wall suspension 30° z incl. screws and washer | not dip galvanized | 2 | 22 480 000 122 |
Dimensions
Polar curve
Polar curve eLLB 20018/18 / eLLB 20036/36 / eLLB 20058/58 |
Polar curve eLLB 20418 / eLLB 20436 |
Your review appreciation cannot be sent
Report comment
Report sent
Your report cannot be sent
Напишете свой отзив
Review sent
Your review cannot be sent
