Производител: Sammode

Pauli 133 HT 100

PAULI 133 HT 100

Max. temp.: 100oC
Technology T8
Power: 2x36W and 2x58W
Housing: Broosilicate glass



Key features
Suitable for very high temperatures
Impervious luminaire
Suitable for industrial environments
Resistant to aggressive chemical environments
Durable and maintainable luminaire

Technical data
Light source
  • 2 x T8 lamps, not included
Optic
  • White powder coated gear tray serving as reflector for diffuse general lighting
  • Extensive reflector (wide beam) in anodised aluminum sheet
Control Gear
  • • Ferromagnetic Control Gear with very low losses (EEI B1)
    • Separate gear tray included in delivery
Power supply
  • 230V 50 Hz
Operating temperature
  • -20oC do +100oC
Connection
  • Cable gland in black polyamid for Ø cable 5–12 mm (3 × 2,5 mm²)
  • Separate gear tray (7 × 2,5 mm²)
Fixing
  • 2 reinforced Stainless Steel fixing straps

Method of Construction

  • • Housing in one piece with high mechanical and chemical resistance
    • Long-lasting imperviousness by axial screw fitting

Materials

  • Housing Borosilicate glass
  • End caps, fixing straps… Stainless Steel 304 L
  • Gaskets Silicone

Standards

  • Imperviousness IP66, IP68 and IP69 K
  • Shock resistance IK07
  • Fire resistance Non-flammable
  • Vibration resistance Meets the standard EN 60598-1 (tested according to CEI 60068-2-6

Options

Finishings

  • End caps and fixing straps in Stainless Steel 316 L MR
Fixings
  • Reinforced fixing straps with HSHC screw BRV
    Shock-resistant fixing straps with HSHC screw BAC
Cable entries (black polyamide)
  • 1 cable gland–Ø cable: 7 to 14 mm 116

Cable entries (nickel-coated brass)

  • 1 cable gland–Ø cable: 5 to 14 mm 113 LN
Disconnectable output cords with Plug (length 0,80 m)
  • High-temperature cord outlet fitted with a WIELAND 4-pin socket CHT4
Accessories
  • Protective roof
  • Fixings for columns
  • 4-outlet IP68 junction box


Power Designation Part No. Optic L (mm)
Versions without reflector
2 x 36 W

PAU133 HT100 236CS G13 PY 113 BRS

 3613 0021 1287
2 x 58 W

PAU133 HT100 258CS G13 PY 113 BRS

 3613 0031 1587
Versions with extensive reflector
2 x 36 W

PAU133 HT100 236CS G13 PY 113 RE BRS

 3613 5001 1287
2 x 58 W

PAU133 HT100 258CS G13 PY 113 RE BRS

 3613 0161 1587

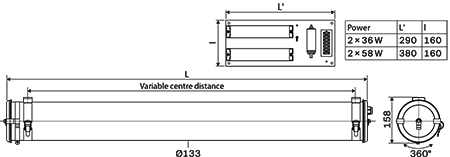

Dimensions

Oprawa PAULI 133 HT 100
