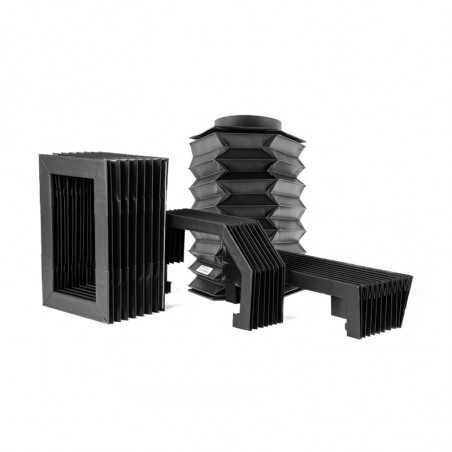

U-Shaped Standard

• Protection of linear guides, precision components...
• Material Polyester + black PVC
• Guiding frames of PVC in each fold
• Metalic Fixing frames
• Protection from dust, water, oil. They are waterproof
• Maximum operating temperature 50 ºC
• Work position horizontal Other materials, position, work conditions, etc in Polygonal Bellows



Stitched Bellows

• Made according to drawings and specifications of the customer.
• Protection of linear guides, screw spindle, pneumatic cylinders, wiring, robotics arm joints, ...
• Material of the bellow as needed according the work conditions, Polyester + PVC or Polyurethane, silicone, aramide, ...
• Suitable if there is limited space for the compressed
• Protect from dust. oil, water, emulsion, hidrocarbure, abrasive, metallic shavings, hot shavings, spark of welding, glass dust,...
• Fixing collar for clamps or fixing flange for flat bridle.
• Work position vertical, horizontal or inclined.
• Optional equipment:
  Zip to open
  Air outlets
  Guiding rings
• In assemblies airtight you must give it air outlets

If you have a drawing, please attach it



Bellows with flat stainless steel plates

• Made according to drawings and specifications of the customer.
• Bellows undeformable and waterproof.
• Protect from hot shavings fall.
• Flat stainless steel plates covering most exposed area.
• Textile material of the bellow can be Polyester covered with PVC, poliurethane, aramide, glass fiber, ...
• Guiding frames of PVC in each Fold. In some cases may have sliders supports, clamps no wear or limit belt scrolling, ...
• Fixing frames metallic with or without drills, velcro, ...

• Work position horizontal, vertical. In the case you have a drawing, please attach it.



Aluminium Apron Covers

The aluminium apron covers can manufactured hollow or solid, riveted or bolted. The aluminum profiles are of 20x5'5mm with polyurethane gasket between them and the ends can be flat of 25x5'5mm or angled of 30x20x5'5mm.
In the case of occurrence of deterioration of any element of the aluminium apron cover, the screwed manufacturing allows the rapid replacement of damaged parts, avoiding unnecessary production stops.Br/> These protections are particularly suitable for the protection of machine components where space is tight, and to protect the fall of coolant and metal shavings especially sharp or hot.
In case you are interested, contact for concrete shapes and sizes. If you have a drawing, please attached it.



Roll-up Covers

• Made according to drawings and specifications of the customer.
• Protection of linear guides, screw spindle, lathes or safety elements in machine tools , lift table, etc,
• Excellent option where the space is limited
• Textile material according the work conditions, PVC(different colors), transparent PVC, Polyurethane, aramide, glass fiber,...
• Protection from dust, water, oil emulsion, abrasive, metallic shavings, hot shavings, sparks of welding, glass,...
• Work position horizontal, vertical, transverse.
• Depending on the width of the textile band and length that we want obtain, would have to be used a a specific diameter 30, 40, 50, 70 ór 90mm
• Its main advantages are: Installation quick and easy cleaning
